SunWare

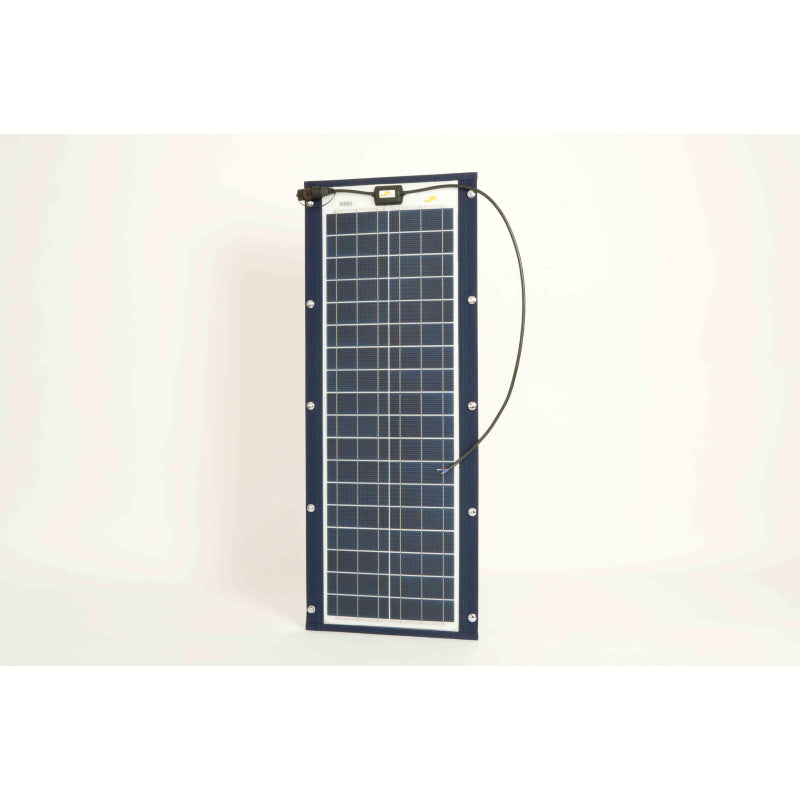

SunWare TX 12052+ 60 Wp, navy blue · Delivery time approx. 2–4 weeks

Name: SunWare TX 12052+ 60 Wp, navy blue · Delivery time approx. 2–4 weeks
Brand: SunWare
SKU: 104-1080
Price: 755.00 EUR
Availability: InStock

€755,00

Tax included. Shipping calculated at checkout

Quantity:

⏳ Delivery time approx. 2–4 weeks
This product is ordered directly from the manufacturer upon order. We will confirm the estimated delivery time by e-mail within 24 hours of receiving the order.

SunWare TX+ Extension Solar Module 60Wp: Expand Your Solar System with Ease

Product Overview: The SunWare TX+ Extension Solar Module 240Wp offers the perfect solution to easily expand your existing TX solar system. These modules are identical in construction to the standard TX modules, but feature an additional extension socket that allows seamless integration into your existing system.

Easy Expansion: If you already have a TX module installed and want to expand your system, simply replace the existing module with the new TX+ module. The "old" TX module to be replaced is then plugged into the extension socket of the new module. An enclosed extension socket facilitates this process, and a compatible plug is included with the module.

Installation and Compatibility: Please note that you must check the polarity of the plugs and sockets before plugging them in for the first time. The blue negative wire must be connected to the pin with the ground symbol, while the red positive wire must be connected to pin 1. The cables and the plug-in system are designed for loads of up to 16A, so that, for example, several modules can be connected to each other without exceeding the maximum plug load.

Important Note: Not all modules are supplied directly with an extension plug, as every plug and socket carries potential corrosion risks, especially in saline environments. Always ensure that the waterproof cover cap is screwed onto the TX+ modules or a plug is placed on the socket to ensure a permanent and secure connection. With the SunWare TX Extension Solar Module 240Wp, you can efficiently expand your solar system and draw maximum energy from your system.

Technical Data	SunWare TX 12052+
Rated power	60 W
Max. daily yield (summer)	360 W
Voltage (Umpp)	19.35 V
Current (Impp)	3.10 A
Open-circuit voltage (Voc)	24.50 V
Short-circuit current (Isc)	3.30 A
Number of cells	36
Carrier plate	Alu-sandwich
Cable outlet	Front
Weight	2.6 kg
Dimensions	1106 x 431 mm

Production Sustainability No data available
