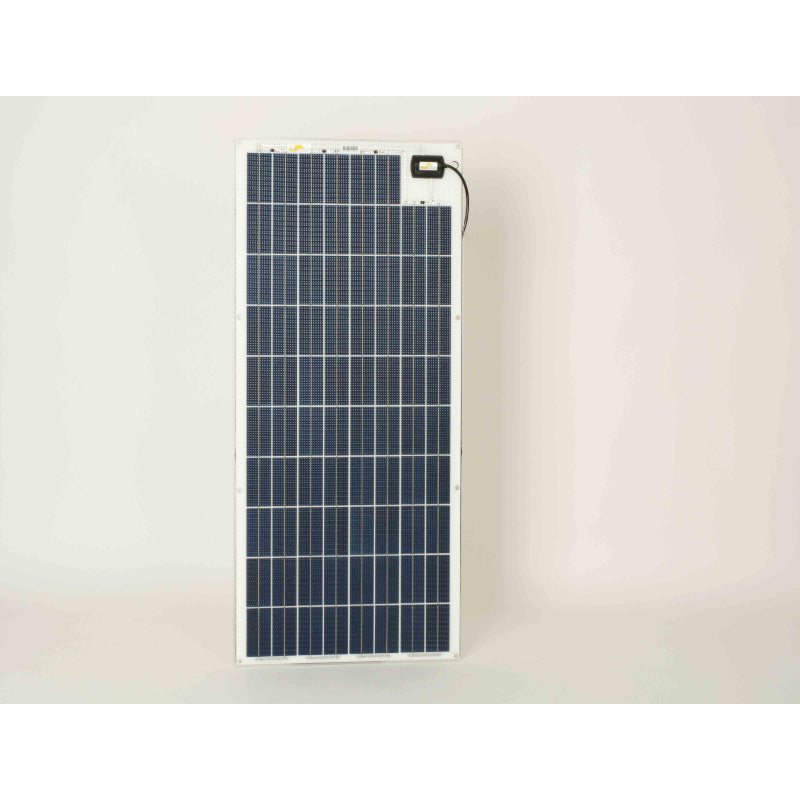

SunWare SW 22146 white, 90Wp 24V · Delivery time approx. 2–4 weeks

SunWare SW Solar Module Series 20 white 90Wp 24V: High-Performance Energy Solutions for Marine Applications

Product Introduction: Experience maximum energy efficiency at sea with the Series-20 Marine Solar Modules, designed for walk-on installation directly on deck. These modules, manufactured in Germany, are not only extremely robust and saltwater-resistant, but also optimally suited for direct gluing or screwing onto the deck, with no back ventilation necessary. Equipped with only one connection cable at the front, these modules allow for straightforward installation.

Performance and Flexibility: The Series-20 Marine Solar Modules are characterized by their high performance even in diffuse light, thanks to the exclusive use of solar cells of the highest performance class. Their semi-flexible design adapts perfectly to deck curvatures and allows for a maximum flexibility of 3%. Due to the special laminate structure, the modules are 100% sea and saltwater resistant, making them ideal for use in harsh marine environments.

Construction Features: These modules are not only lightweight and compact, but also offer outstanding power output thanks to the built-in monocrystalline PERC high-performance solar cells, protected by EVA laminate and ETFE top layers. The Series-20 Marine Solar Modules can be firmly mounted by screws, gluing, or with SunWare clips and are walkable even when permanently installed with boat shoes.

Installation Flexibility: The included 3-meter connection cable, as well as the option to route the cable in the deck, increase installation flexibility.

Use and Reliability: Series-20 Marine Solar Modules are a reliable energy source specially developed for demanding marine and saltwater use. They are the ideal choice for demanding boat owners seeking high functionality and lasting durability in an aesthetically pleasing design.



---



Technical Data	SunWare SW 22146
Rated Power	90 W
Max. Daily Yield (Summer)	540 W
Voltage (Umpp)	42.86 V
Current (Impp)	2.10 A
Open Circuit Voltage (Voc)	53.00 V
Short Circuit Current (Isc)	2.15 A
Number of Cells	78
Support Plate	Alu-Sandwich
Cable Outlet	Front side
Weight	3.6 kg
Dimensions	1119 x 493 mm
