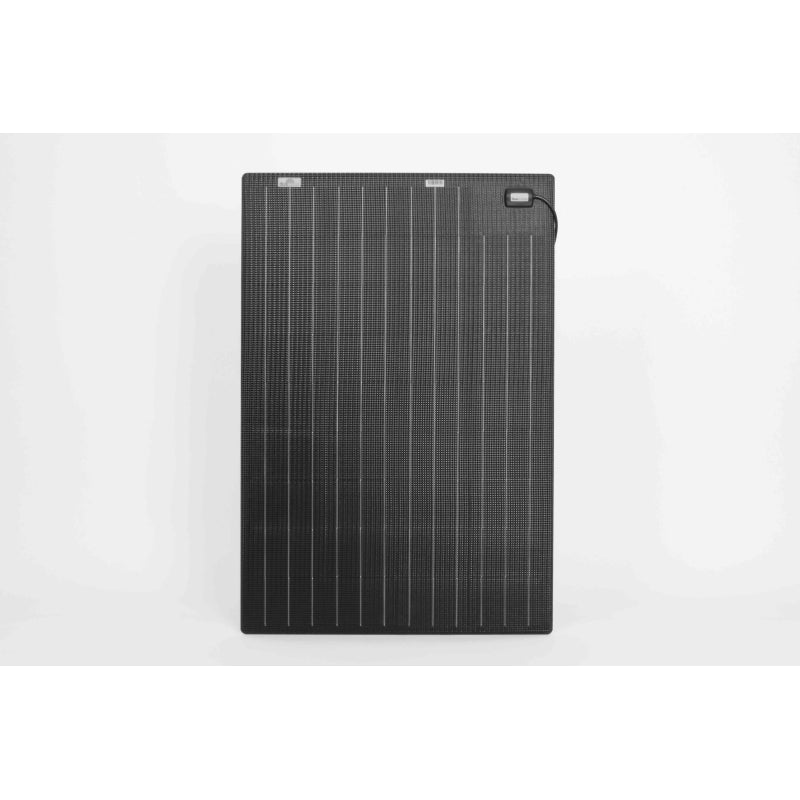

SunWare SW 20185 Black, 120 Wp · Delivery time approx. 2–4 weeks

SunWare SW Solar Module Series 20 Black 120Wp 12V: High-Performance Energy Solutions for Marine Applications

Product Introduction: Experience maximum energy efficiency at sea with the Marine Solar Modules Series-20, ideally designed for walkable installation directly on deck. These German-made modules are not only extremely robust and saltwater-resistant but also perfectly suited for direct adhesive bonding or screwing onto the deck, with no ventilation required. Equipped with only one connection cable at the front, these modules allow for uncomplicated installation.

Performance and Flexibility: The Marine Solar Modules Series-20 are characterized by their high performance, even in diffuse light, thanks to the exclusive use of solar cells of the highest performance class. Their semi-flexible design adapts perfectly to deck curvatures, allowing a maximum flexibility of 3%. Due to the special laminate construction, the modules are 100% sea and saltwater resistant, making them ideal for use in harsh marine environments.

Design Features: These modules are not only lightweight and compact, but also offer outstanding power output thanks to the built-in monocrystalline PERC high-performance solar cells, protected by EVA laminate and ETFE top layers. The Marine Solar Modules of the Series-20 can be firmly mounted using screws, adhesive bonding, or with SunWare clips and are walkable with boat shoes even when permanently installed.

Installation Flexibility: The included 3-meter connection cable and the option to route the cable through the deck increase installation flexibility.

Use and Reliability: Marine Solar Modules Series-20 are a reliable energy source, specially developed for demanding marine and saltwater use. They are the ideal choice for demanding boat owners who seek high functionality and lasting durability in an aesthetically pleasing design.



---



Technical Data	SunWare SW 20185
Nominal Power	120 W
Max. Daily Yield (Summer)	720 W
Voltage (Umpp)	19.35 V
Current (Impp)	6.20 A
Open Circuit Voltage (Voc)	23.80 V
Short Circuit Current (Isc)	6.48 A
Number of Cells	35
Backing Plate	Aluminum Sandwich
Cable Outlet	Front
Weight	4.7 kg
Dimensions	1012 x 689 mm
