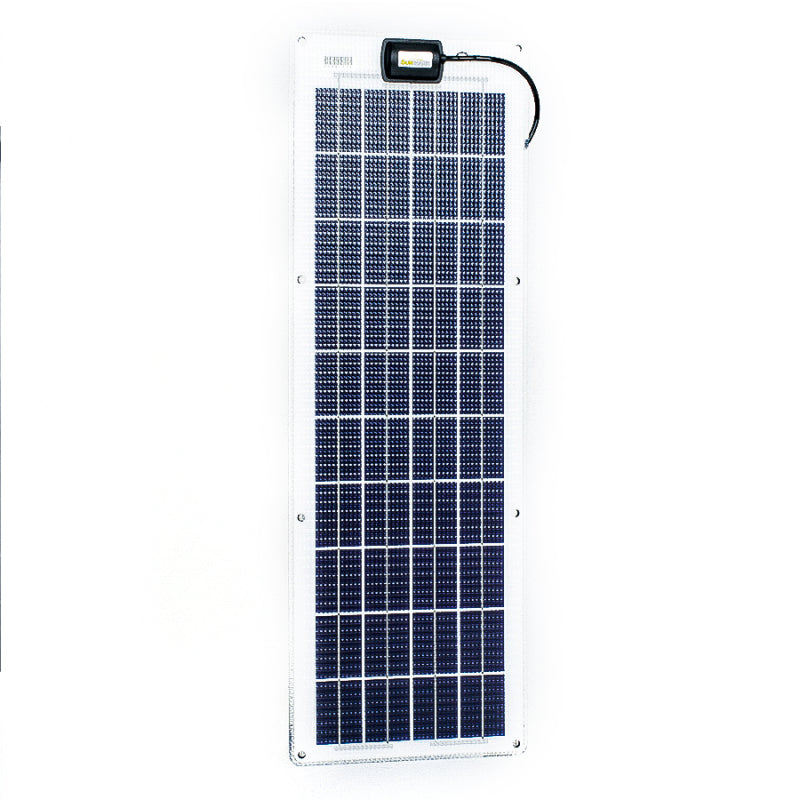

SunWare SW 20145 white, 30 Wp

SunWare SW Solar Module Series 20 White 30Wp 12V: High-Performance Energy Solutions for Marine Applications

Product Introduction: Experience maximum energy efficiency at sea with the Marine Solar Modules Series-20, ideally designed for walkable installation directly on deck. These modules, manufactured in Germany, are not only extremely robust and saltwater-resistant but also perfectly suited for direct bonding or screwing onto the deck, with no ventilation required. Equipped with only one connection cable at the front, these modules allow for uncomplicated installation.

Performance and Flexibility: The Marine Solar Modules Series-20 are characterized by their high performance even in diffuse light, thanks to the exclusive use of solar cells of the highest performance class. Their semi-flexible design adapts perfectly to deck curvatures and allows for a maximum bendability of 3%. Due to the special laminate structure, the modules are 100% seawater and saltwater resistant, making them ideal for use in harsh marine environments.

Construction Features: These modules are not only light and compact but also offer outstanding power output thanks to the integrated monocrystalline PERC high-performance solar cells, protected by EVA laminate and ETFE top layers. The Marine Solar Modules of Series-20 can be securely mounted with screws, adhesive, or SunWare clips and are walkable with boat shoes even when permanently installed.

Installation Flexibility: The included 3-meter connection cable, as well as the option to route the cable within the deck, increase flexibility during installation.

Use and Reliability: Marine Solar Modules Series-20 are a reliable energy source specifically developed for demanding marine and saltwater use. They are the ideal choice for discerning boat owners who seek high functionality and lasting durability in an aesthetically pleasing design.



---



Technical Data	SunWare SW 20145
Rated Power	30 W
Max. Daily Yield (Summer)	180 W
Voltage (Umpp)	21.43 V
Current (Impp)	1.40 A
Open Circuit Voltage (Voc)	27.2 V
Short Circuit Current (Isc)	1.51 A
Number of Cells	40
Backing Plate	Alu-Sandwich
Cable Outlet	Front
Weight	1.6 kg
Dimensions	807 x 273 mm
