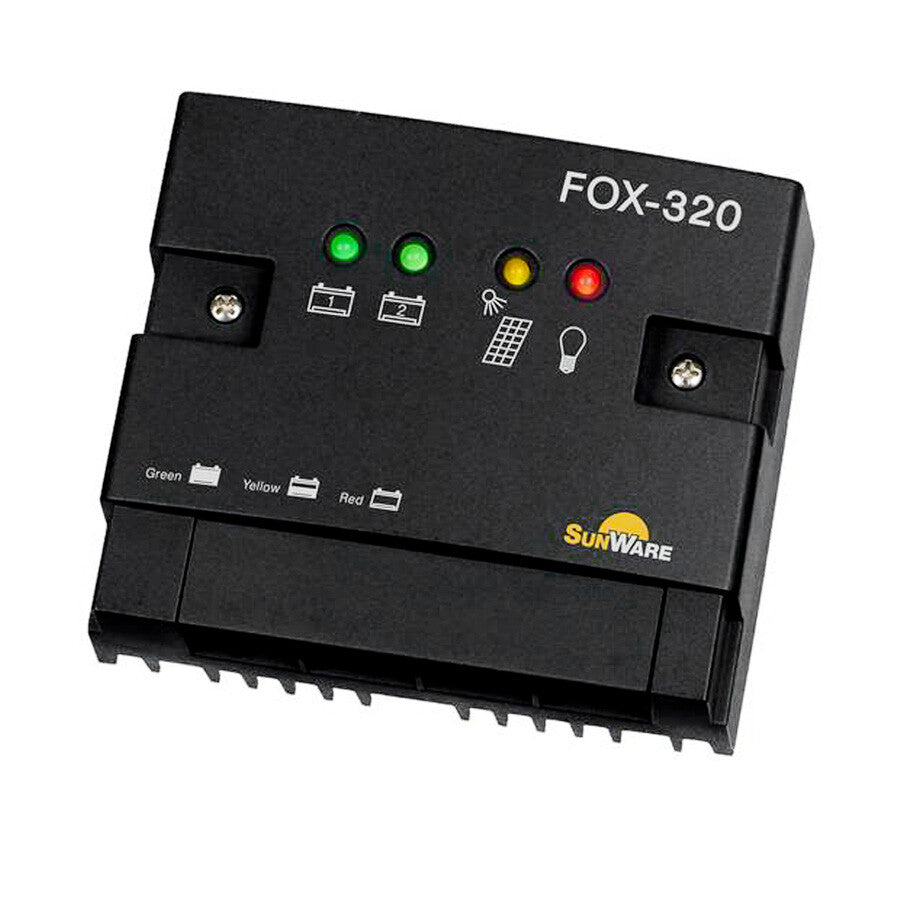

SunWare FOX-320 LED Solar Charge Controller

SunWare FOX-320 LCD Solar Charge Controller

Powerful solar controller with optimal charging efficiency

The FOX-320 is a high-quality charge controller, suitable for use with 12/24V battery systems and for module currents up to 22 amperes. All commercially available solar modules up to 50 V open-circuit voltage and batteries (lead-acid, lead-gel or AGM) can be connected.

Thanks to the second battery output, the FOX-320 is predestined for use in installations where two separate battery systems are to be charged completely independently of each other. The controllers monitor the solar system and optimally maintain the battery.

The LED display always gives you an overview of the current charge status of your system.

The FOX-320 concept is based on a powerful microcontroller that has proven its exceptional reliability in industrial environments. The entire control of the charging function, including all monitoring functions, is handled by this highly integrated component.

Product details

• 12/24V system voltage
• Charge status indicator with LED display
• 3-stage PWM control
• Charging with pulse width modulation
• Integrated temperature compensation
• Reverse polarity protection
• Deep discharge protection
• Suitable for all battery types
• Acoustic warning before load disconnection
• Programmable night light function

Additional features:

The adaptive deep discharge protection monitors and protects the battery from harmful deep discharge; alternatively, the night light function can be used. In addition, the optimized charging curve in combination with the hardware PWM control can achieve significantly faster and gentler battery charging. Dangerous gassing and overcharging are reliably prevented.

The controller automatically detects the 12/24V system voltage. The active reverse current blocking guarantees reverse current protection and allows an extremely low voltage drop between module and battery.

FOX charge controllers have proven themselves in use for 20 years. The charging algorithm for gentle and highly efficient charging of your battery systems has been systematically further developed. Thanks to the combination of mature technology with robust components, FOX charge controllers are 100% reliable, safe and durable. FOX charge controllers protect your batteries on long journeys and during your absence.
