SunWare
SunWare FOX-260Li LCD Solar Charge Controller · Delivery time approx. 2–4 weeks

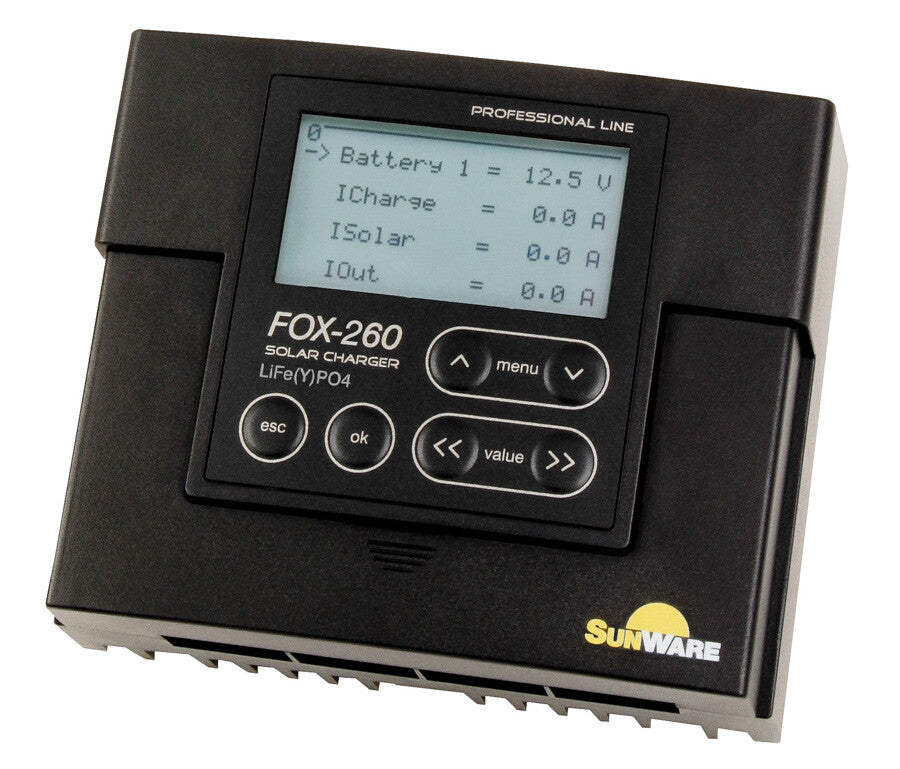

FOX-260 LCD Solar Charge Controller 20A
Powerful solar controller with optimal charging efficiency especially for LiFe(Y)PO4 batteries
The FOX-260 is a high-quality charge controller suitable for use with 12/24V battery systems and for module currents up to 20 amperes. All commercially available solar modules (up to 340W at 12V or 680W at 24V) and batteries (lead/acid or lead/gel or AGM) can be connected.
An illuminated graphical LCD display is integrated into the controller. The keyboard allows you to select between different displays and adjust the basic settings of the controller.
Additional features:
The adaptive deep discharge protection monitors and protects the battery from harmful deep discharge, or the night light function can be used. In addition, the optimized charging characteristic in combination with the hardware PWM control can achieve significantly faster and gentler charging of the battery. Dangerous gassing and overcharging are reliably prevented.
The controller automatically detects the 12/24V system voltage. The active reverse current blocking guarantees reverse current protection and allows for extremely low voltage drop between the module and the battery.
FOX charge controllers have proven themselves in use for 20 years. The charging algorithm for gentle and highly efficient charging of your battery systems has been systematically further developed. Through the combination of sophisticated technology with robust components, FOX charge controllers are 100% reliable, safe and durable. FOX charge controllers protect your batteries on long journeys and during your absence.
Further features at a glance:
- 12/24V system voltage
- LCD display / charge status indicator
- Integrated temperature compensation
- Electronic overvoltage protection
- Charging with pulse width modulation
- Reverse current protection
- Easy installation
- Terminals for 16mm² cables
- Concealed terminals
- Night light function
- Deep discharge protection
| Technical Data | FOX-260 |
|---|---|
| max. solar input in amperes | 20A |
| max. solar input in watts | 340W / 680W |
| Battery voltage | 12/24V automatic |
| min. battery voltage | 1V |
| max. battery voltage | 15V |
| max solar voltage | 30V |
| Operating temperature | -40°C to +45°C |
| Battery type | GEL, AGM, lead-acid |
| Dimensions | 129 x 42 x 21 mm |
| Weight | 0.25 kg |
