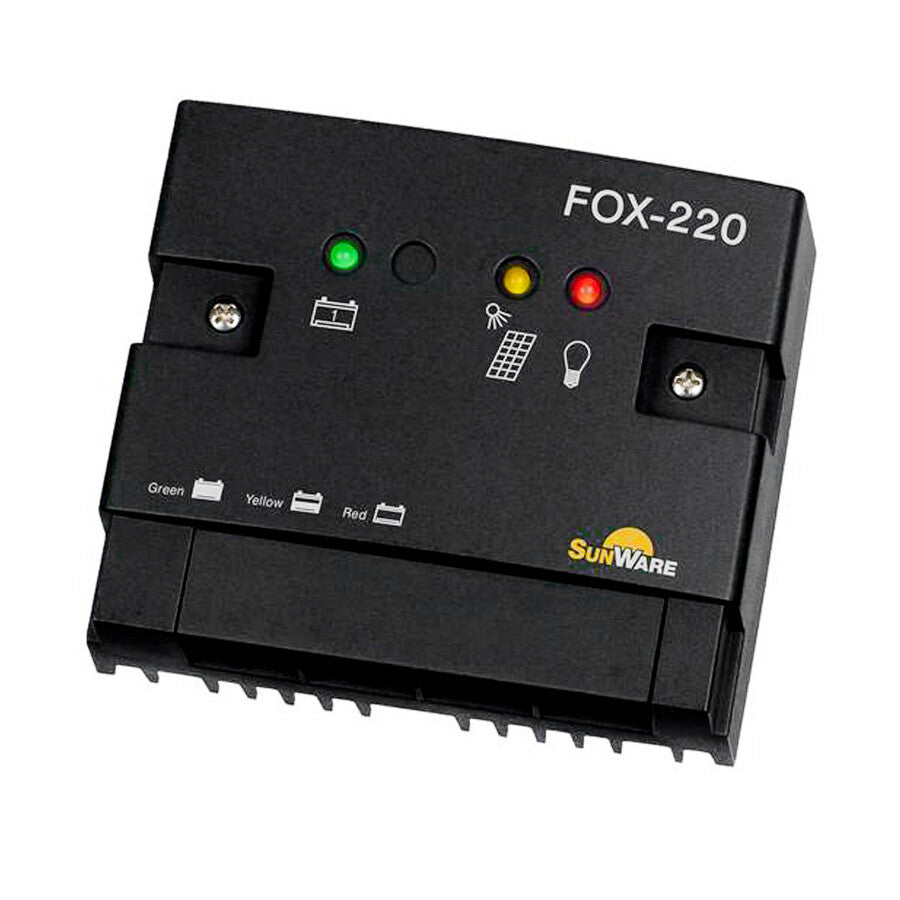

SunWare FOX-220 LED Solar Charge Controller
SunWare FOX-220 LCD Solar Charge Controller
Powerful solar controller with optimal charging efficiency
The FOX-220 is a high-quality charge controller, suitable for use with 12/24V battery systems and for module currents up to 22 amperes. All commercially available solar modules up to 50V open-circuit voltage and batteries (lead-acid or lead-gel or AGM) can be connected.
The controller monitors the solar system and maintains the battery optimally. Thanks to the LED display, you always have an overview of the current charge status of your system.
The concept of the FOX-220 is based on a powerful microcontroller that has proven its particular reliability in industrial environments. The entire control of the charging function, including all monitoring functions, is handled by this single highly integrated component.
Product Details
- 12/24V system voltage
- Charge status indicator with LED display
- 3-stage PWM control
- Charging with pulse width modulation
- Integrated temperature compensation
- Reverse polarity protection
- Deep discharge protection
- Suitable for all battery types
- Audible warning before load disconnection
- Programmable night light function
Additional Features:
The adaptive deep discharge protection monitors and protects the battery from harmful deep discharge; alternatively, the night light function can be used. In addition, the optimized charging curve in combination with the hardware PWM control can achieve significantly faster and gentler battery charging. Dangerous gassing and overcharging are reliably prevented.
The controller automatically detects the 12/24V system voltage. The active reverse current blocking guarantees reverse current protection and allows for an extremely low voltage drop between the module and the battery.
FOX charge controllers have proven themselves in use for 20 years. The charging algorithm for gentle and highly efficient charging of your battery systems has been systematically further developed. Through the combination of mature technology with robust components, FOX charge controllers are 100% reliable, safe, and durable. FOX charge controllers protect your batteries on long journeys and during your absence.
| Technical Data | FOX-220 |
|---|---|
| max. Solar input in amperes | 20A |
| max. Solar input in watts | 340W /12V or 680W / 24V |
| Battery voltage | 12/24V automatic |
| min. Battery voltage | 8.5V |
| max. Battery voltage | 35V |
| max Solar voltage | 50V |
| Operating temperature | -40°C to +45°C |
| Battery type | GEL, AGM, Lead-acid |
| Dimensions | 129 x 42 x 21 mm |
| Weight | 0.25 kg |
