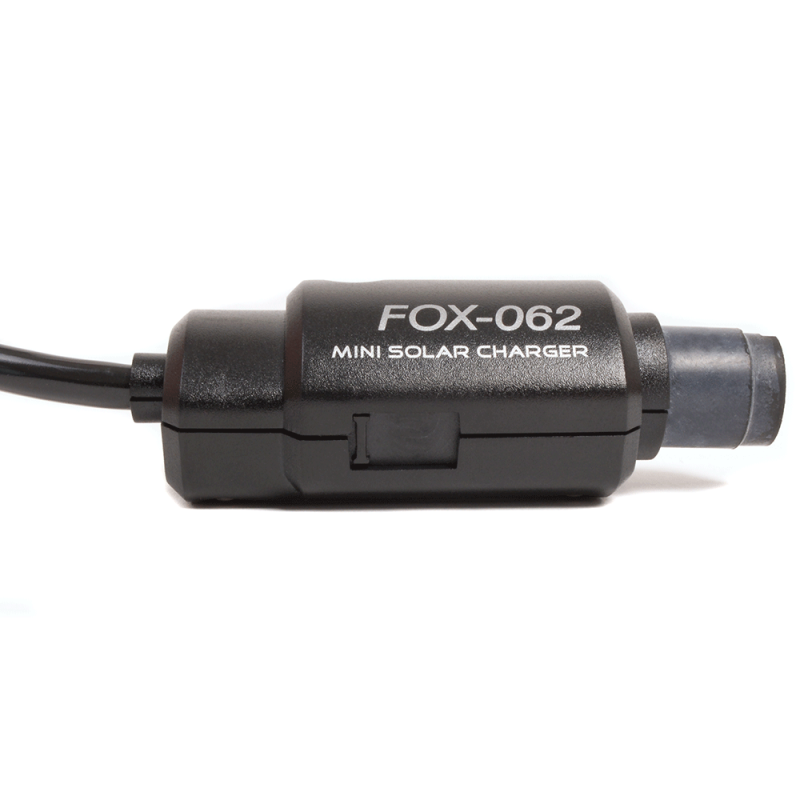

SunWare FOX-062 Solar Charge Controller

Compact charge controller for 12V/24V systems / 6A

The FOX-062 is a state-of-the-art miniature charge controller for 12V and 24V solar systems. Despite its small dimensions, the overcharge protection is designed for a solar current of 6A. Reverse current protection is integrated.

The charging characteristic can be set for lead-acid, GEL, or AGM batteries using the red DIP switch in the controller housing. Current LiFePO4 batteries are, of course, also supported. A slider can be used to close the recess, making accidental adjustment and dirt penetration impossible.

On the solar input side, there is a SureSeal socket into which the module cable with a SureSeal plug can be inserted. On the output side to the battery, a car plug with integrated fuse is mounted. If the red adapter at the tip of the plug is removed, a car socket can also be used.

Further special features at a glance

• 12V / 24V system voltage
• 6 A max. solar current (Isc)
• 100 watts solar power at 12V
• 200 watts solar power at 24V
• LED indicators

Boot 2015 Charge Controller FOX-062 from SunWare Germany on Vimeo.

High charging efficiency
The charge controller is designed as a series regulator with active reverse current protection. This achieves a charging efficiency of 98%. In contrast to MPPT regulators, this type of regulator has up to 20% higher charging power when using 12V or 24V solar modules. The high converter losses are completely avoided. Especially in low light conditions, where the converter losses almost completely destroy the yield of an MPPT regulator, the series regulator shines. Since the FOX-062 works almost loss-free, no heatsink is necessary either. The best proof of an optimal circuit layout.
Automatic 12V/24V detection
After plugging in the controller, it checks the current battery voltage and thus determines the system voltage of the battery. No settings need to be made for this. For safety reasons, the controller does not start at battery voltages below 8.6V, as there may be a battery defect.
LED display
The FOX-062 has a 3-color LED. By combining the color of the LED and the blinking frequency, various information about the battery and charging are displayed.
red flashing: battery empty (< 20%)="">
red constant: battery weak (<30%)>
orange: battery normal (30%-70%)
green constant: battery normal (>70%)
green flashing: battery full (100%)
If a charging current flows from the solar module into the battery, the LED flickers briefly every few seconds. If the plug is pulled from the socket, the LED goes out - even if a solar module is connected.
