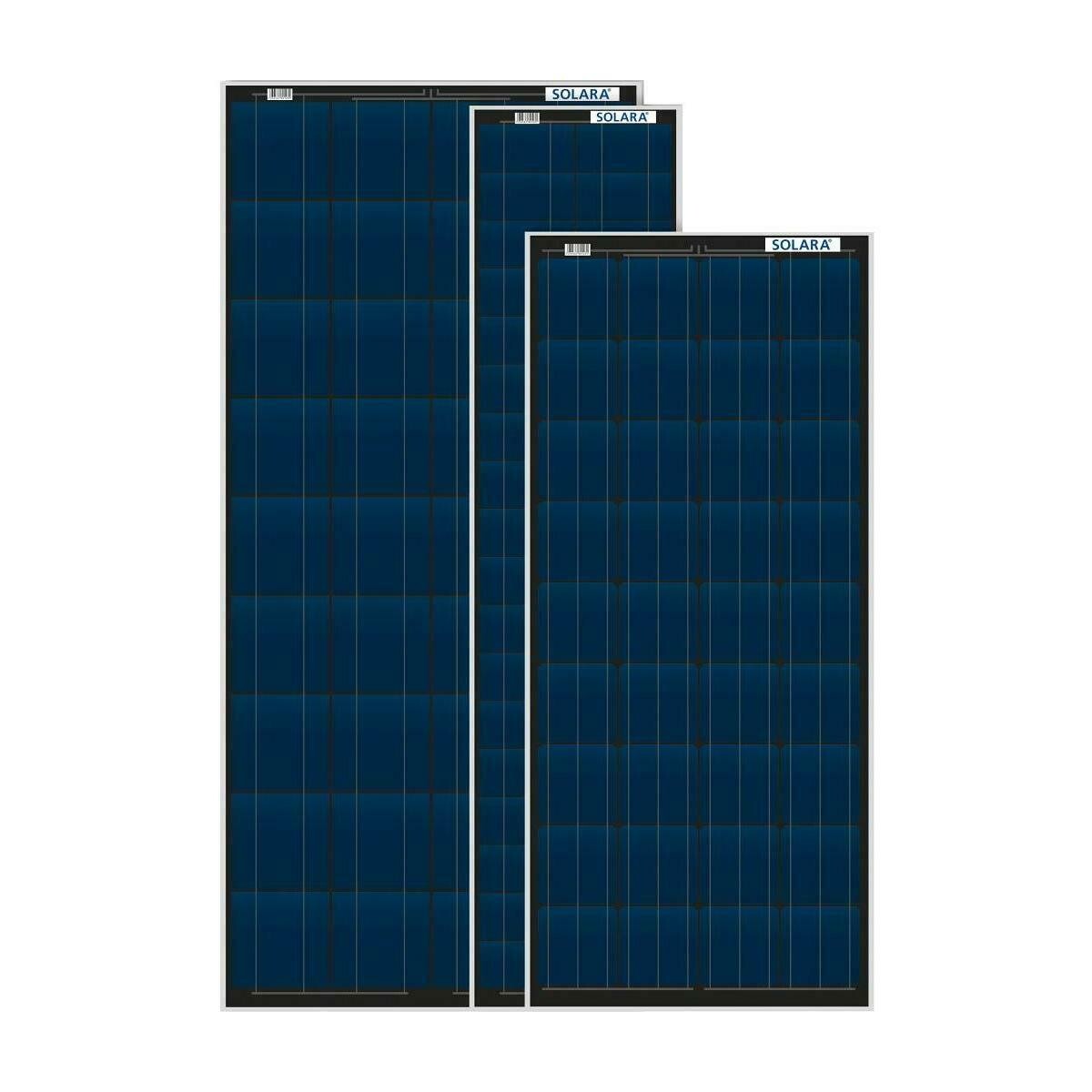

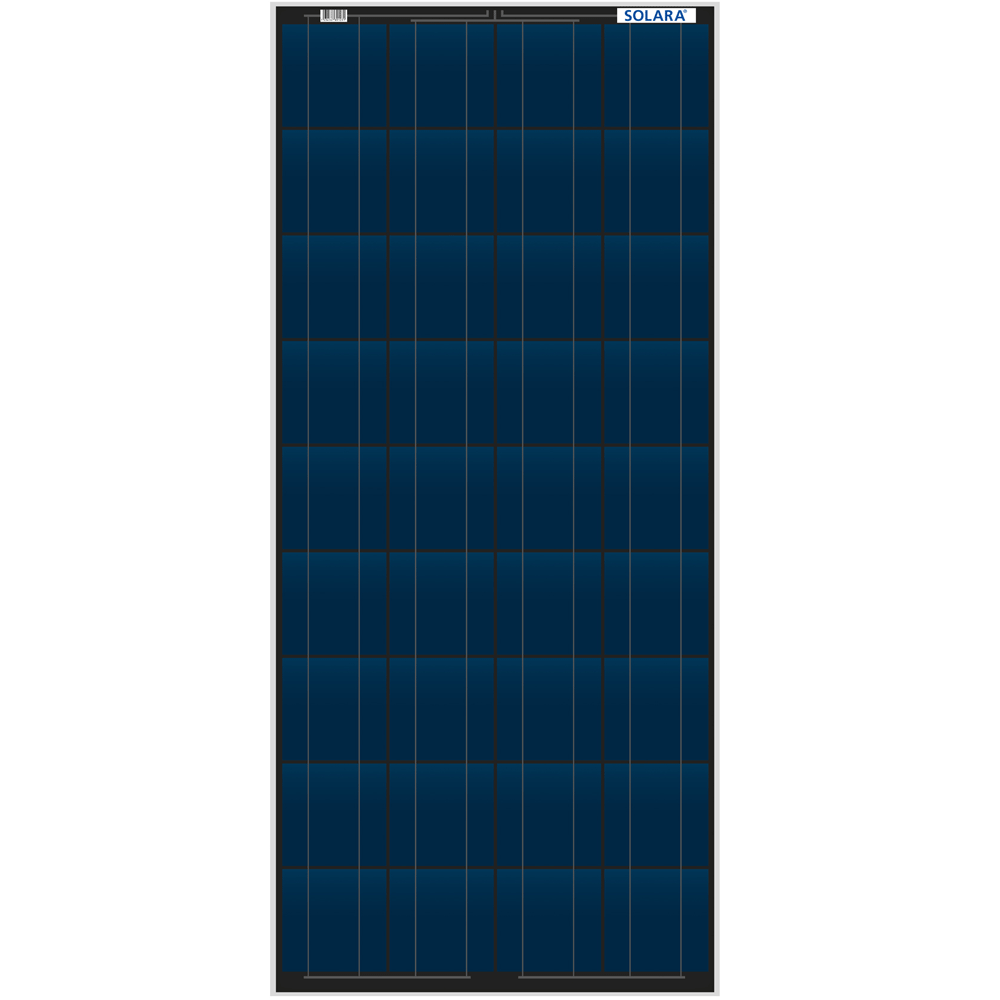

SOLARA S-Series - S760M36 Solar Panel 190Wp · Delivery time approx. 2–4 weeks

Monocrystalline High-Performance Module - Power Solar Cell Even More Effective

These SOLARA modules are ideally suited for mobile use on motorhomes, as they are significantly smaller and lighter than conventional poly- or monocrystalline solar modules. The modules are also suitable for use in garden sheds and all other 12V off-grid solar systems.

Features at a glance:

• 190 watt monocrystalline solar module
• Higher cell efficiency of over 20%
• Anodized hollow chamber profile frame in silver
• Less weight and less surface area than conventional solar modules
• ESG anti-reflective toughened glass
• Bypass diodes integrated
• Junction box with IP65
• Pre-wired with MC4 connectors (+ / -)
• Trouble-free connection of multiple modules thanks to MC4 connectors
• 20-year performance guarantee

Easy installation, quick commissioning and pre-prepared materials make your setup a breeze! The modules are enclosed in a sturdy hollow chamber profile frame and promise maximum stability, especially under extreme conditions.
Thanks to their anti-reflective glass, the modules allow significantly more light to pass through and thus ensure higher transmission compared to other modules. The cell efficiency of the monocrystalline SunPower solar modules is 21%. The modules are factory-equipped with a cable connection and MC4 connectors to simplify the connection of multiple modules.

Further information
In addition to a 12V battery, you also need a charge controller, which prevents the power supply and thus overcharging or, if necessary, deep discharge of the battery. It also ensures optimal charging voltage and provides the necessary reverse current protection at night.
Please visit our category for charge controllers.
Furthermore, the question of suitable mounting for the new solar panel often arises. Here we have various brackets, mounting systems and mounting spoilers for attachment to motorhomes, house walls and many other possibilities.
Please take a look at our category mounting systems.
Of course, we have already put together complete solar kits for a wide range of requirements. These kits contain, in addition to the modules and brackets, all the materials necessary for installation, such as connection cables, adhesive, sealant and roof penetrations.
Further information can be found in the category Complete Solar Kits.

Technical data S760M36

Rated power	190 W
Voltage	20.13 V
Current	9.44 A
Open circuit voltage	24.14 V
Short circuit current	10.09 A
Number of cells	36
Weight	12.1 kg

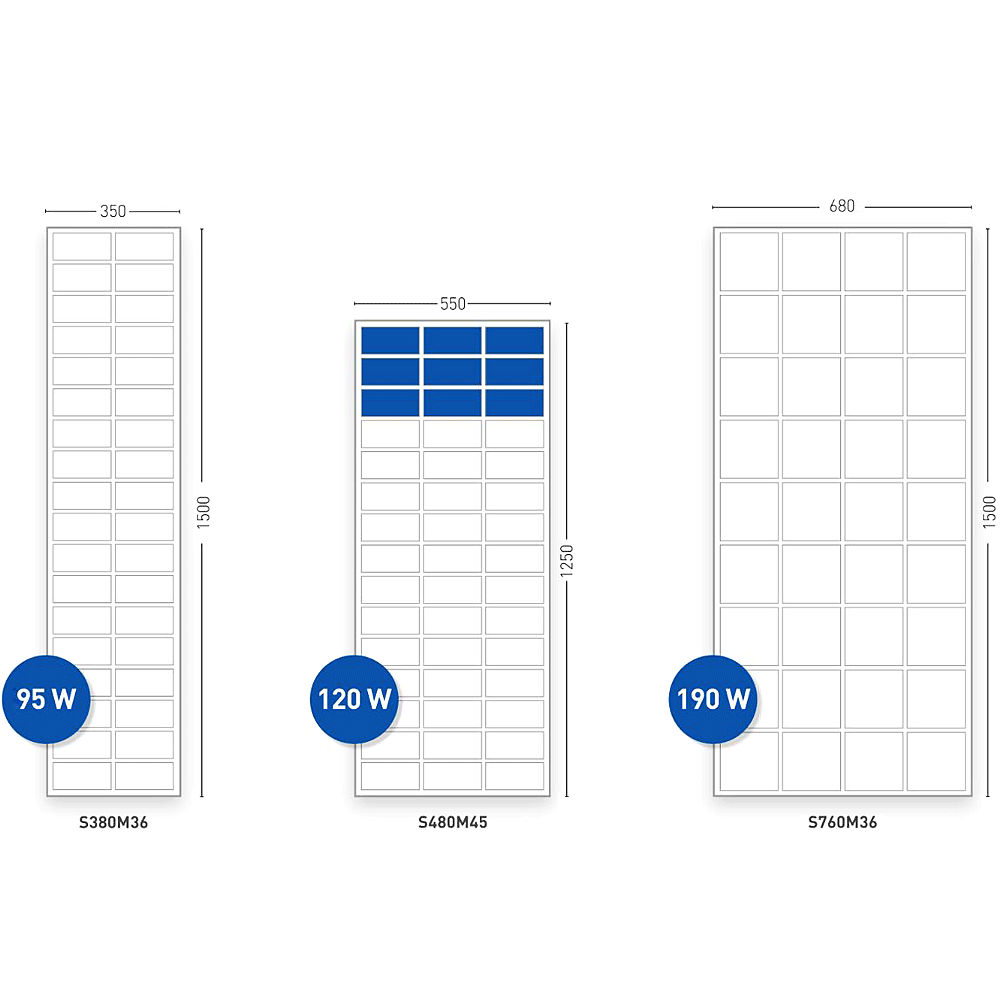

Dimensions	1500 x 680 x 35 mm
