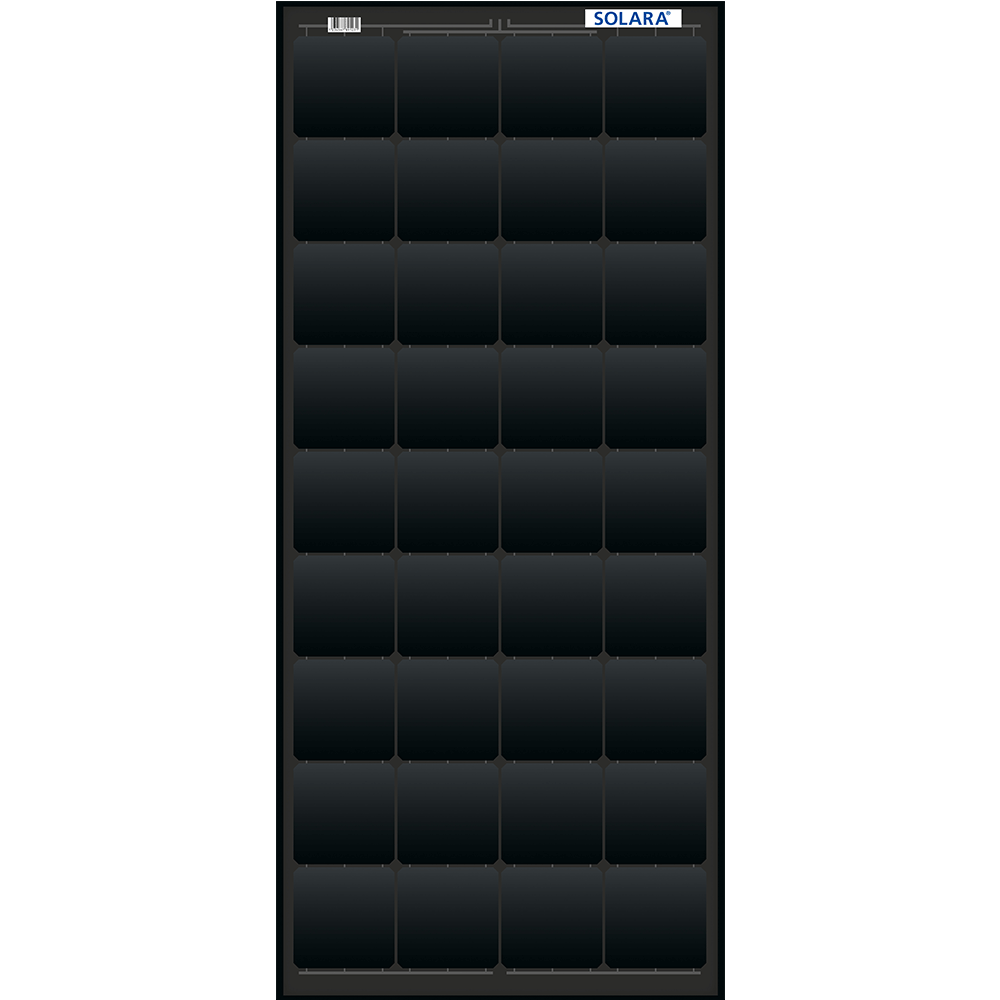

SOLARA Power S-Series - S555M36 Solar Module 125Wp · Delivery time approx. 2–4 weeks

Monocrystalline High-Performance Module - Power Solar Cell Even More Effective

These SOLARA modules are ideal for mobile use on motorhomes, as they are significantly smaller and lighter than conventional poly- or monocrystalline solar modules. The modules are also suitable for use in garden sheds and all other 12V solar island systems.

Features at a glance:

• 125 Watt monocrystalline solar module
• Higher cell efficiency of 23%
• Anodized black hollow-chamber profile frame
• Less weight and less surface area than conventional solar modules
• ESG anti-reflective tempered glass
• Integrated bypass diodes
• Junction box with IP65
• Pre-wired with MC4 connectors (+ / -)
• Easy connection of multiple modules thanks to MC4 connectors
• 20-year performance guarantee

Easy installation, quick commissioning and pre-prepared materials make your setup a breeze! The modules are enclosed in a sturdy hollow chamber profile frame and promise maximum stability, especially under extreme conditions.
Thanks to their anti-reflective glass, the modules allow significantly more light to pass through and thus ensure higher transmission compared to other modules. The cell efficiency of the monocrystalline SunPower solar modules is 23%. The modules are factory-equipped with a cable connection and MC4 connectors to simplify the connection of multiple modules.

Further information
In addition to a 12V battery, you also need a charge controller that regulates the power supply and thus prevents overcharging or, if necessary, deep discharge of the battery. In addition, it ensures optimal charging voltage and guarantees the necessary backflow protection at night.
Please visit our category for charge controllers.
Furthermore, the question often arises as to a suitable mounting for the new solar panel. Here we have various brackets, mounting systems and mounting spoilers for attachment to motorhomes, house walls and many other possibilities.
Please take a look at our category mounting systems.
Of course, we have already put together complete solar sets for various requirements. These sets include not only the modules and brackets, but all materials necessary for installation such as connection cables, adhesive, sealant and roof ducts.
Further information can be found in the category Solar Complete Sets.

Technical data S555M36

Average daily yield (summer)	555 Wh/d
Rated power	125 W
Voltage	19.08 V
Current	6.56 A
Open circuit voltage	24.68 V
Short circuit current	6.87 A
Number of cells	36
Weight	6.6 kg

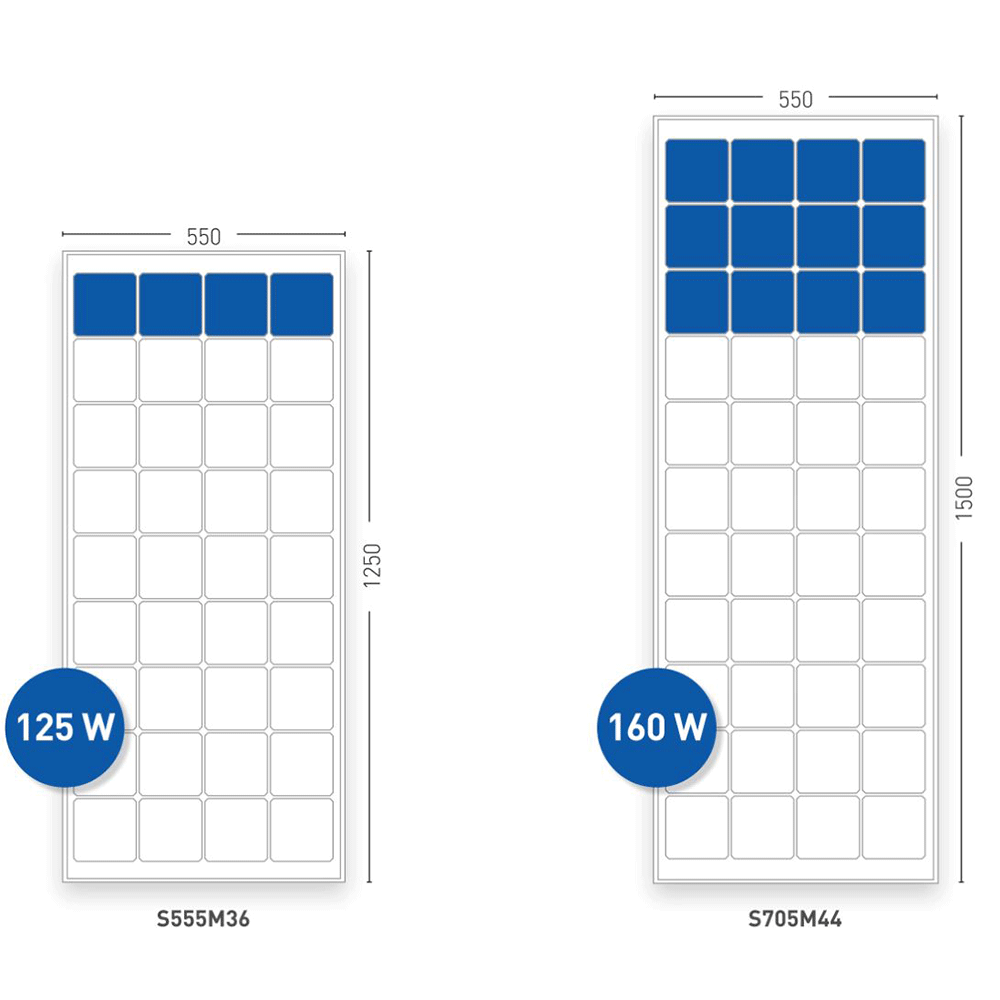

Dimensions	1250 x 550 x 35 mm
