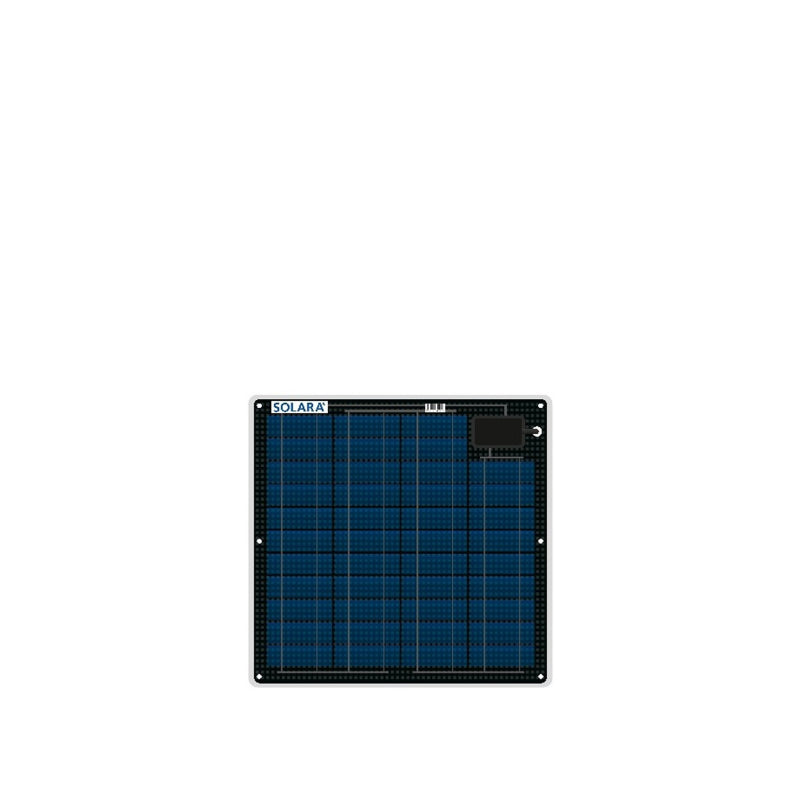

SOLARA M-Series - S140M42 Marine 35Wp · Delivery time approx. 2–4 weeks

Professional solar module for demanding use on water!

The SOLARA M-series Premium solar modules have been specially developed for maritime use on boats, yachts, buoys or lifeboats. These premium modules are made of crystalline high-performance cells and, due to their robust and impact-resistant (no glass) construction, are particularly suitable for curved boat decks.

Further special features at a glance:

• Fully walkable
• Shatterproof stability due to stainless steel backing plate.
• Stainless steel plate, 2-layer powder-coated
• Application-specific installation flexibility (max. 3%), also thanks to innovative chaining technology
• Maximum daily yield due to the use of 42 extremely light-sensitive crystalline solar cells!
• Teflon-like protective film on front and back - 5mm all around, overlapping and welded
• Additional protective embedding of the solar cells in seawater-resistant, robust EVA film
• Robust, small, flat seawater-proof cable outlet, glued and screwed
• Easy to glue on or screw on with mounting holes
• 100% Made in Germany

The SOLARA M-series Premium consists of 42 crystalline high-performance cells. High performance even in diffuse light and in low-light months. Each solar module is individually tested for functional safety, weather resistance and durability.
Equipped with UV/ozone-resistant solar connection cable, seawater-proof cable outlet and mounting holes. The modules are walkable, seawater-proof and defy all weather conditions, always providing power on board.

Due to their versatile applicability, the M-series solar modules can be mounted on over 90% of existing deck curvatures!

For bonding, we recommend our A-J215 or Sikaflex adhesive, both of which you can find in our shop under Installation.

Further information
In addition to a 12V battery, you also need a charge controller that prevents power supply and thus overcharging or, if necessary, deep discharge of the battery. It also ensures optimal charging voltage and provides the necessary reverse current protection at night.
Here you can find our charge controller assortment.
Of course, we have already put together complete solar kits for a wide range of requirements. These kits contain, in addition to the modules, all the materials necessary for installation, such as connection cables, adhesive, sealant.
Further information can be found in the category Solar Complete Set.

Technical data S110P42

Average daily yield in summer	140 Wh/d
Rated power	35 Wp
Voltage (Umpp)	24.36 V
Current (Impp)	1.38 A
Open circuit voltage	28.56 V
Short circuit current	1.44 A
Number of cells	42
Cell dimension	104 x 35 mm
Weight	1.70 kg
Dimensions (LxWxH)	464 x 481 x 4 mm
