SOLARA EcoLux HV-Series E480M72/S 110 Watt · Delivery time approx. 2–4 weeks

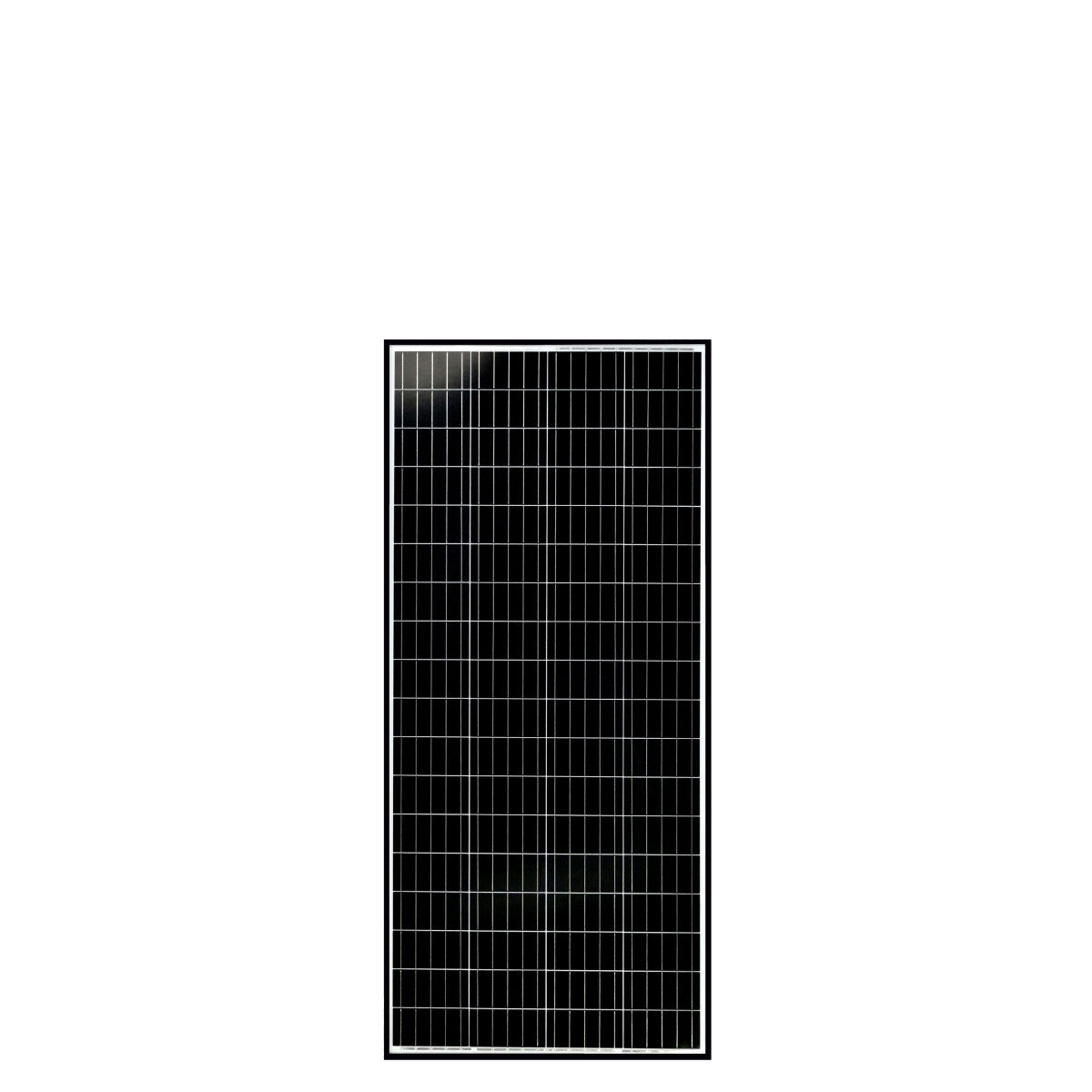

SOLARA EcoLux HV-Series Vision E480M72/S, 110 Watt with black frame: Perfect for mobile use
Cutting-edge technology for your energy needs
The SOLARA EcoLux HV-Series Vision E480M72/S with 110 watts and an elegant black frame is specially designed for mobile use. This series utilizes advanced, back-contact solar cells, which not only offer naturally higher cell voltage but also boast outstanding low-light and temperature performance. Even with low sun exposure, they generate enough voltage to efficiently charge your on-board batteries.
Optimized for limited space
If you have limited space, the EcoLux HV-Series offers the perfect solution. These solar modules require up to 21% less space compared to standard crystalline modules and even over 45% less than conventional thin-film modules. With a weight of only 8.0 kg – compared to 16 kg for a comparable 100-watt CIS module – they are also lightweight and easy to handle.
Specifications and advantages at a glance
Innovation and Efficiency
- Cell technology: Monocrystalline PERC with an efficiency of over 23%
- Front: Made of hardened solar glass, hail-resistant and thus durable
- Module frame: Sturdy, anodized hollow chamber profile frame for added strength
- Junction box: IP65 protection class with MC4-compatible connectors for easy and secure installation
Top performance – Developed for the highest demands
- SunPower cells: With over 23% efficiency for the highest daily yields in the smallest area
- Low-light performance: Excellent performance even with low sun exposure
- Temperature stability: Ensures consistently high voltage even with varying temperatures
- Sturdy frame: The hollow chamber profile frame ensures durability and resilience
Discover a new dimension of solar energy for mobile use with the SOLARA EcoLux HV-Series modules. These modules offer you not only exceptional efficiency and performance but also the flexibility to install them almost anywhere – perfect for your freedom on the go.
| Technical Data | E480M72 |
| Nominal power | 110 W |
| Max. daily yield (summer) | 480 Wh/d |
| Voltage (Umpp) | 39.95 V |
| Current (Impp) | 2.75 A |
| Open-circuit voltage (Voc) | 48.47 V |
| Short-circuit current (Isc) | 2.83 A |
| Number of cells | 72 |
| Cell technology | monocrystalline PERC |
| Weight | 7.2 kg |
| Dimensions | 1065 x 550 x 35 mm |
