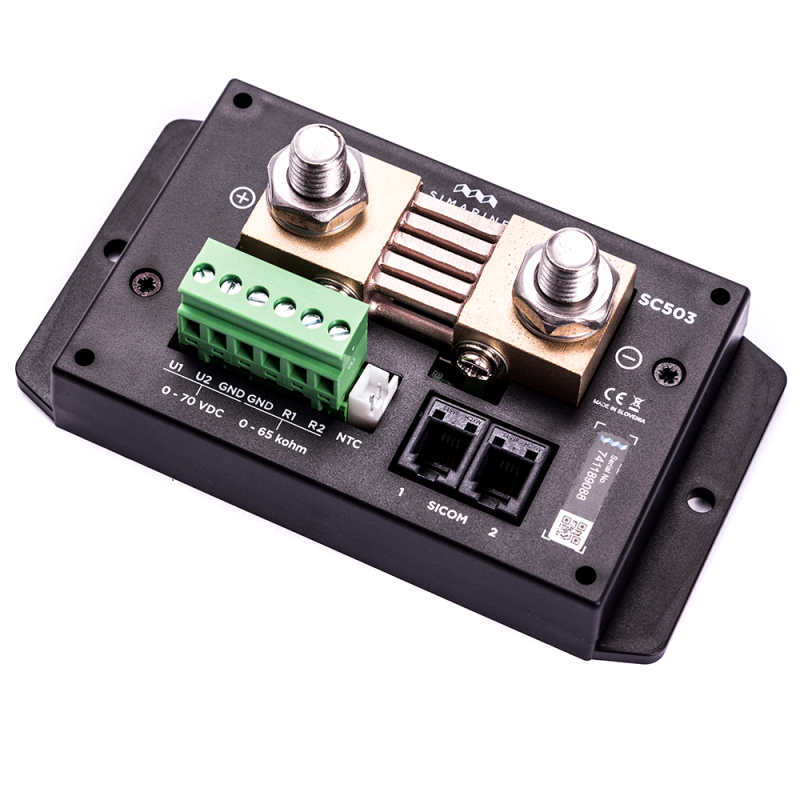

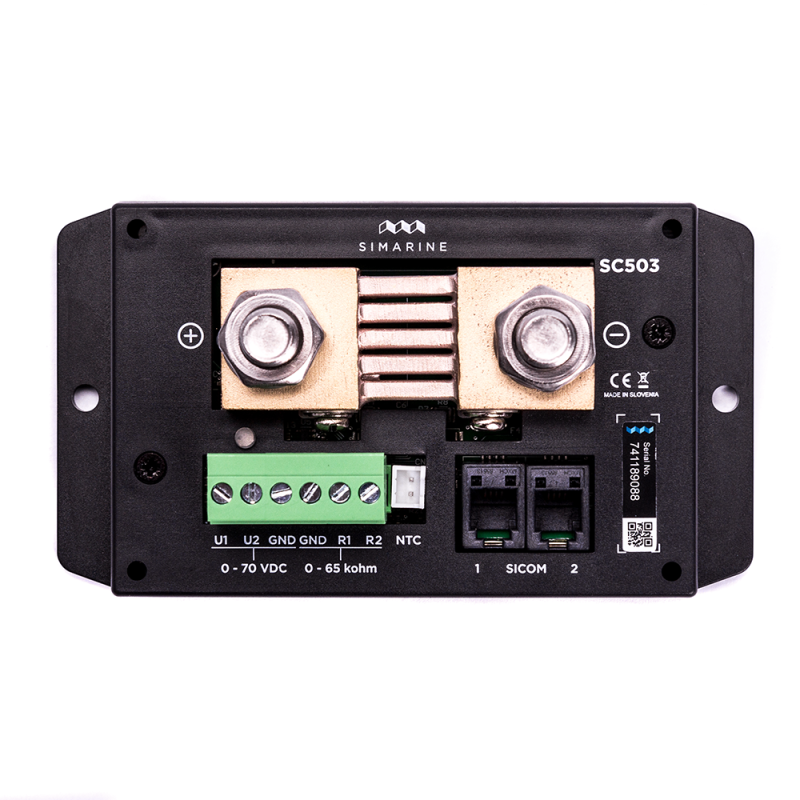

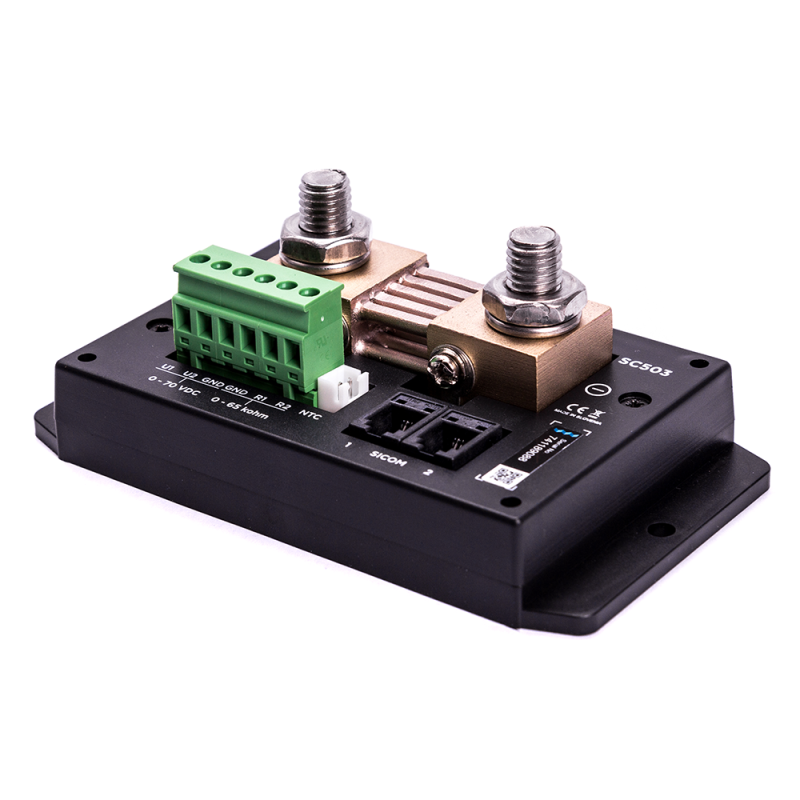

Simarine SC503 Digital Shunt 500 A

SC503 - high-precision combination shunt for the PICO battery monitor

• 2 voltage sensors
• 2 temperature sensors
• 1x JST socket (temperature sensor)
• 1 current sensor for up to 500 A for systems up to 75 V.

It can be used to monitor the power consumption of large consumers (inverters, bow and stern thrusters, anchor winches) and power generators (shore power chargers and solar panels). In addition, it enables the monitoring of tanks for fuel, fresh water and grey water.

The SC503 is an innovative combination of shunt and tank level module. The active SC503 combination shunt ensures precise monitoring of battery voltage in systems with 12 V, 24 V, 48 V, 60 V and 72 V, battery temperature and continuous currents of up to 500 A (peak 600 A). It is suitable for a maximum power of 7200 W at 12 V, 14,400 W at 24 V, or 28,800 W at 48 V.

It features an additional battery voltage input (2 total).

The integrated tank level module has 2 resistance inputs for monitoring tank level or temperature and an additional JST socket for the temperature sensor with JST connector. Furthermore, the SC503 module can also be used to monitor the power consumption of large consumers such as inverters, bow and stern thrusters, and anchor winches, and power generated by generators such as shore power chargers, solar panels, hydro and wind power generators.

The SC503's innovative protected architecture allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).
