Simarine PICO Standard Set Rev23 - Black without mounting frame

The PICO STANDARD Package in Black

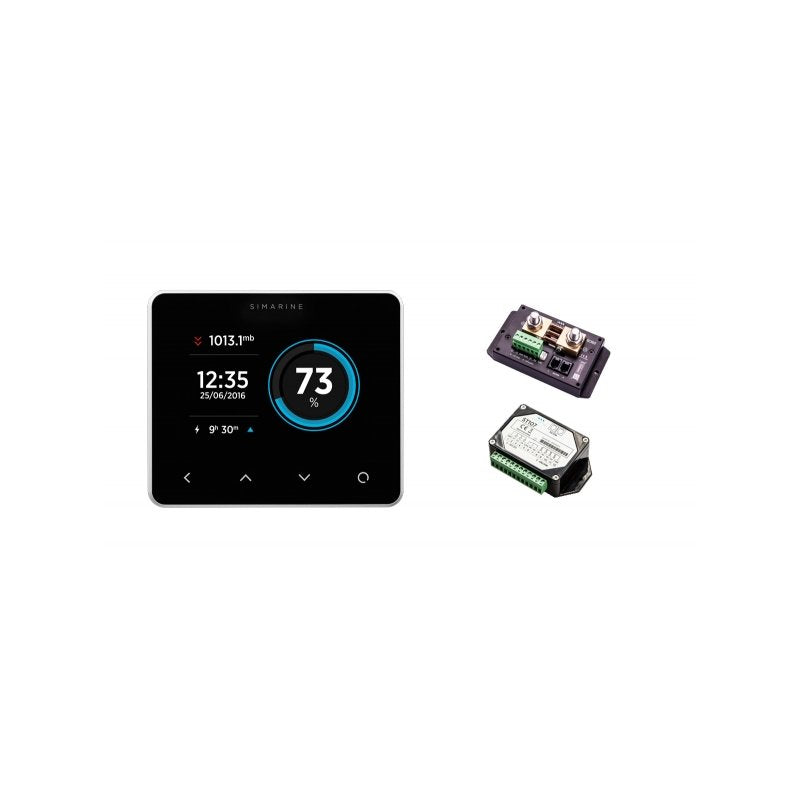

The PICO STANDARD package is the ideal solution for battery and tank monitoring for yachts and caravans. It supports 1 main battery (300 A at 12 V, 24 V, 48 V, 60 V and 72 V), up to 4 auxiliary batteries (voltage display only) and up to 6 tanks. The package includes:

• 1x PICO one display unit
• 1x SC303 300 A shunt
• 1 x ST107 tank module

SC303 - Your innovative monitoring solution

The SC303 combines a shunt with a tank level module. It offers precise monitoring of battery voltage, battery temperature and continuous currents up to 300 A (peak 400 A) for systems from 12 V to 72 V. The SC303, suitable for up to 3600 W at 12 V or 7200 W at 24 V, has two battery voltage inputs and can also monitor the power consumption of large consumers such as inverters or generators. The innovative architecture of the SC303 allows connection to both the negative and positive sides (up to 24 V).



ST107 Tank Module - Versatile monitoring options

The ST107 is a versatile module for monitoring tank and temperature sensors, as well as battery voltage. It offers four resistance inputs for tank level or temperature sensors and three voltage inputs for tank and battery voltage sensors. With the ST107, you can monitor up to 7 tank levels, 3 battery voltages, and 4 temperatures. Enjoy the freedom and security of comprehensive system monitoring on board your caravan or yacht with the PICO STANDARD Package in Black.



Additional Information:

In addition to the PICO STANDARD Package, we also recommend using a suitable charge controller for optimal power supply. You can find our range of charge controllers here. Also discover our complete solar kits, which include all necessary installation materials and are perfectly tailored to your needs. More information can be found in the Solar Complete Kits category.



Technical Data	Simarine Pico
Voltage Range	6 - 35 V
Power Consumption (Operation)	0.8 mA
Max. Current	300 A
Max. Peak Current	400 A
Voltage Range	0 - 75 V
Sampling Rate	100 ms
Temperature Range	-20°C to 70°C
Dimensions	108.5 x 94 x 10 cm
