Simarine PICO Standard Set Rev23 - Black with Mounting Frame

The PICO STANDARD Package in Black

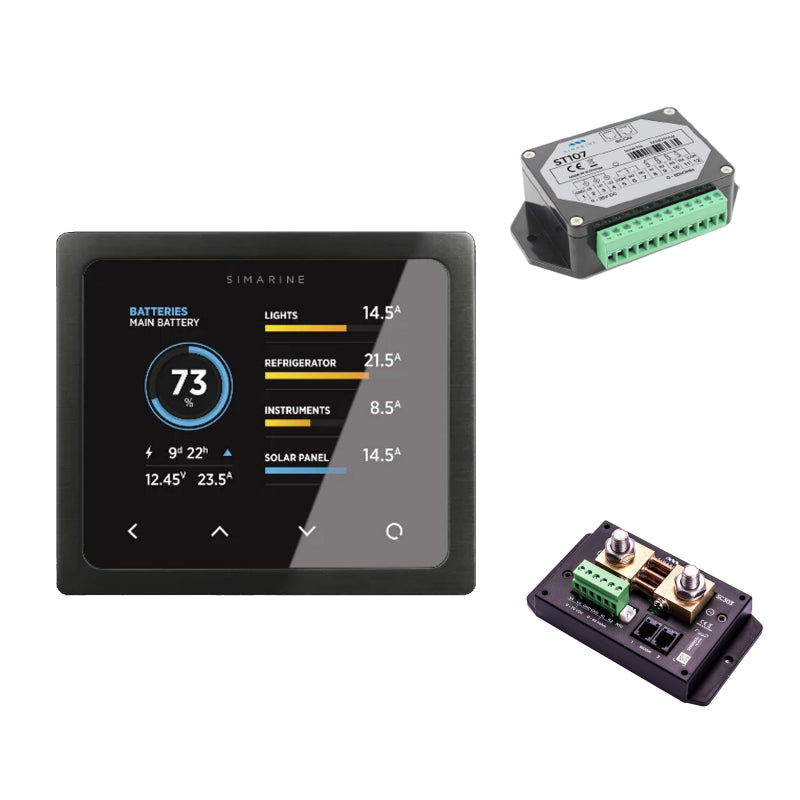

The PICO STANDARD Package offers an excellent monitoring solution for batteries and tanks, ideal for use in yachts and caravans. It can handle one main battery (300 A at 12 V, 24 V, 48 V, 60 V and 72 V) and up to four auxiliary batteries (voltage measurement only), as well as up to six tanks. The package includes:

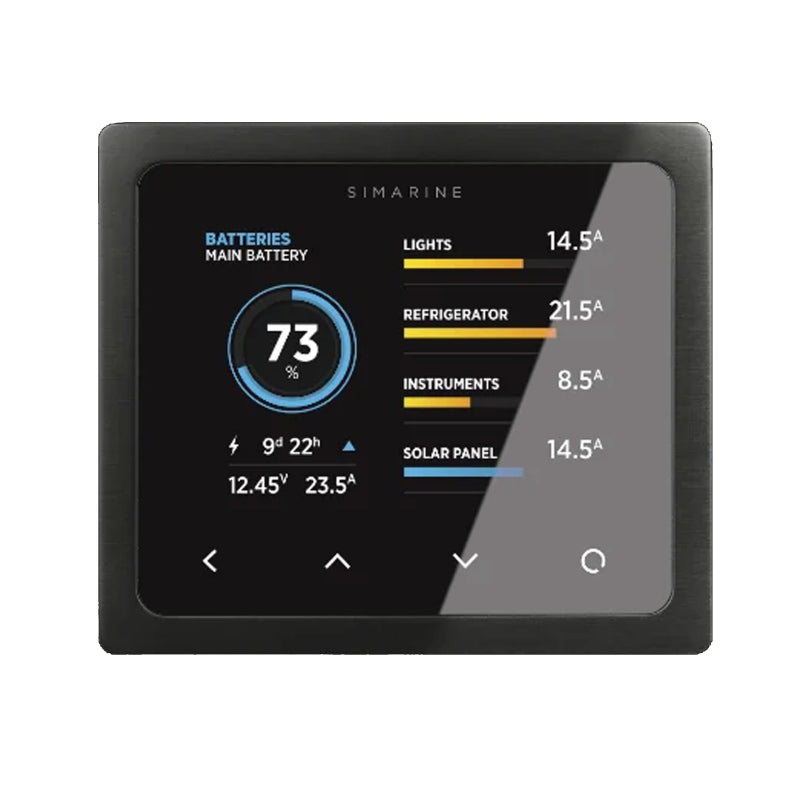

• 1x PICO One Display Unit
• 1x Shunt SC303 300 A
• 1x Tank Module ST107

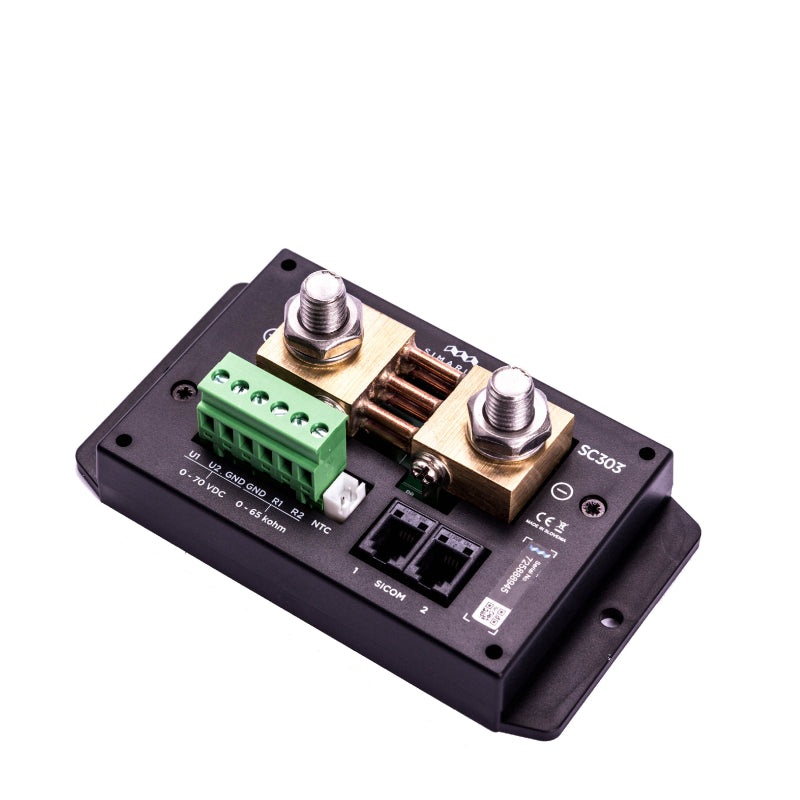

SC303 – Your innovative monitoring tool

The SC303 combines a shunt with a tank level module and provides accurate measurements of battery voltage, battery temperature, and continuous currents up to 300 A (peak values up to 400 A) for systems from 12 V to 72 V. For power up to 3600 W at 12 V or 7200 W at 24 V, the SC303 has two inputs for battery voltages and can also monitor the power consumption of large consumers such as inverters or generators. Its innovative architecture allows connections on both the negative and positive sides (up to 24 V).

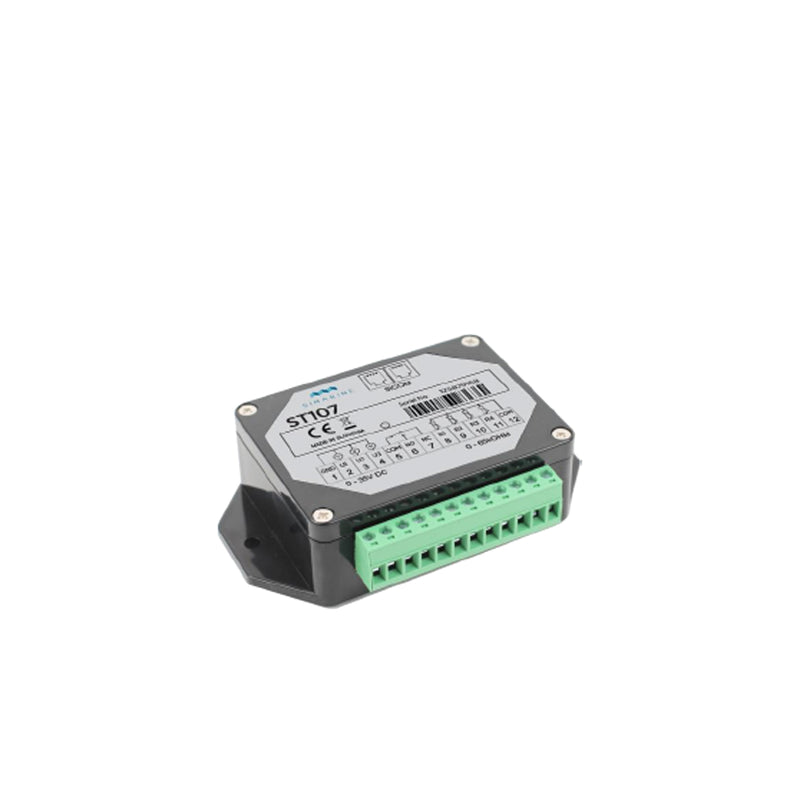

Tank module ST107 – Comprehensive monitoring functions

The ST107 is a multifunctional module that can monitor tank and temperature sensors as well as battery voltage. It offers four resistance inputs for tank level or temperature sensors and three voltage inputs for monitoring tank and battery voltage. With the ST107, you can control up to seven tank levels, three battery voltages, and four temperatures. Experience the freedom and security of comprehensively monitoring your systems on board your caravan or yacht with the PICO STANDARD Package in Black.

Further recommendations

In addition to the PICO STANDARD Package, we recommend using a suitable charge controller for optimal power supply. Also discover our complete solar kits, which include all necessary installation materials and are perfectly tailored to your needs.



Technical Data	Simarine Pico
Voltage Range	6 - 35 V
Current Consumption (Operating)	0.8 mA
Max. Current	300 A
Max. Peak Current	400 A
Voltage Range	0 - 75 V
Sampling Rate	100 ms
Temperature Range	-20°C to 70°C
Dimensions	108.5 x 94 x 10 cm
