Simarine PICO Standard Set Rev23- Battery monitor, tank electrode and shunt

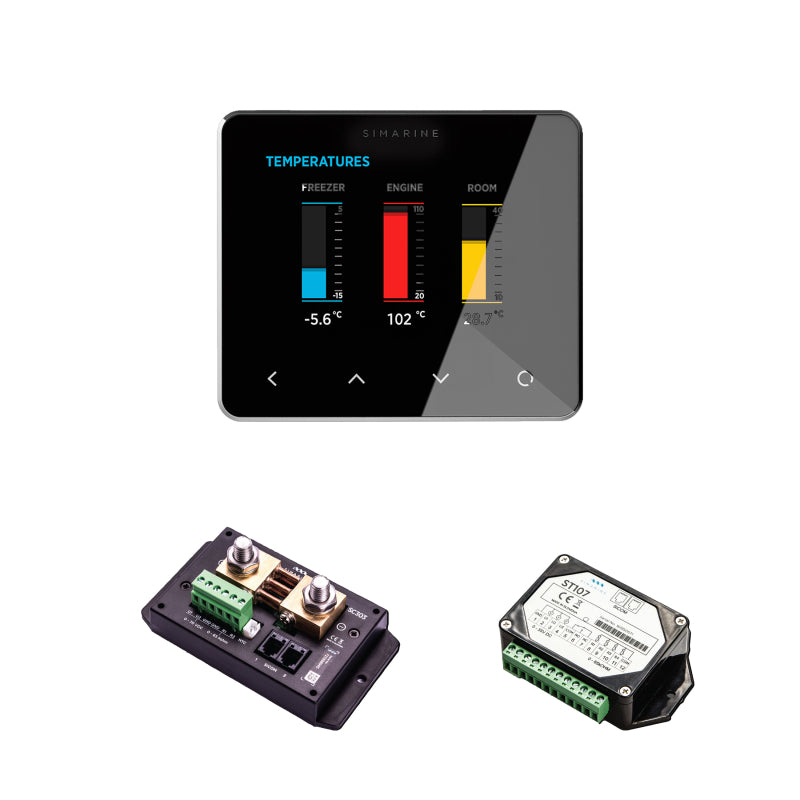

Package PICO Standard in black or silver

The PICO Standard package is the perfect battery and tank monitoring solution for yachts and caravans with 1 main battery (300 A at 12 V, 24 V, 48 V, 60 V and 72 V), up to 4 additional batteries (voltage display only) and up to 6 tanks.

• 1x display unit PICO one
• 1x shunt resistor SC303 300 A
• 1 x tank module ST107

SC303 is an innovative combination of shunt resistor and tank level module

The SC303 active combination shunt provides precise monitoring of battery voltage in 12V, 24V, 48V, 60V and 72V systems, battery temperature and continuous currents of up to 300A (peak 400A). It is suitable for a maximum power of 3600W at 12V or 7200W at 24V. It has an additional battery voltage input (2 in total).

The integrated tank level has 2 resistance inputs for monitoring the tank level or temperature and an additional JST socket for the temperature sensor with JST connection. In addition, the SC303 module can also be used to monitor the power consumption of large consumers such as inverters, bow and stern thrusters and anchor winches and power generated by generators such as shore power chargers, solar modules, hydro and wind power generators.

The innovative proprietary architecture of the SC303 allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).

Tank module ST107

ST107 is a versatile module for monitoring tank and temperature sensors as well as battery voltage. Equipped with four resistance inputs for tank level or temperature resistance sensors and three voltage inputs for tank and battery voltage sensors, it offers a wide range of connection options.

ST107 is the latest digital module with extensive connection (and monitoring) options. It enables monitoring of up to 7 tank levels, 3 battery voltages and 4 temperatures.

Suitable tank sensors : Basically all resistance-related level indicators such as:

• Wema sensor for water and fuel S3
• Schaudt tank probe (an adapter cable may be required)


All monitoring functions of the PICO Standard package

1x battery bank with Real-Time Battery Health™ (monitoring of current, voltage and temperature)
4x battery voltage only
6x tank levels or temperatures

Barograph function included

Compatible and expandable with all SIMARINE shunts and modules.
