Simarine PICO One Set Rev23 - schwarz – Marine Infinite Shop (1/3)

Simarine

Simarine PICO One Set Rev23 - black · Delivery time approx. 2–4 weeks

Name: Simarine PICO One Set Rev23 - black · Delivery time approx. 2–4 weeks
Brand: Simarine
SKU: 306-1103
Price: 360.18 EUR
Availability: InStock

€360,18

Tax included. Shipping calculated at checkout

Quantity:

⏳ Delivery time approx. 2–4 weeks
This product is ordered directly from the manufacturer upon order placement. We will confirm the estimated delivery time by email within 24 hours of receiving your order.

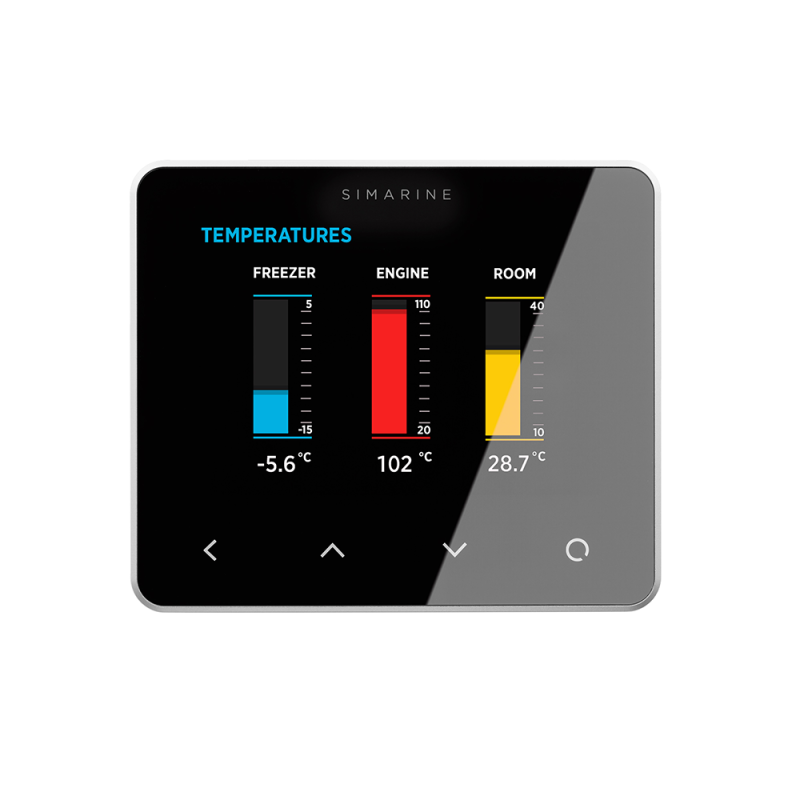

PICO One (BASIC) Package in Black

The PICO One package offers a comprehensive solution for monitoring batteries and tanks in smaller boats, campervans, buses, and caravans. It supports a service battery bank of up to 300 A for 12 V, 24 V, 48 V, 60 V, and 72 V systems, as well as one or two engine/reserve battery banks and up to two tanks.

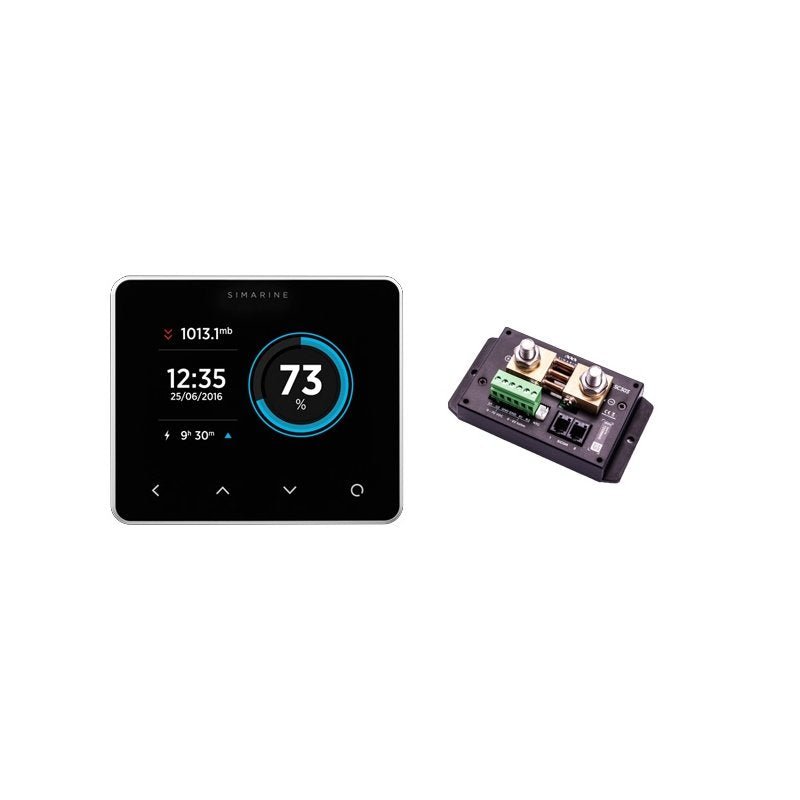

1x PICO One display unit
1x SC303 300 A shunt

Innovative Technology

The SC303 combines the functions of a shunt and a tank level module in one device. This provides accurate measurement data for battery voltage for systems from 12 V to 72 V, records battery temperature, and handles continuous currents up to 300 A (peak 400 A). It can process a maximum power of 3600 W at 12 V or 7200 W at 24 V and offers two inputs for battery voltages.

Tank Monitoring and More

The tank level part of the SC303 includes two resistance inputs for monitoring level or temperature, as well as an additional JST socket for a temperature sensor with a JST connection. Furthermore, the SC303 module enables the monitoring of energy consumption of high-power consumers such as inverters, bow and stern thrusters, and anchor winches, and monitors the current generated by generators such as shore power chargers, solar systems, and wind power generators.

Flexible Installation

Thanks to the innovative and protected design of the SC303, the module can be connected to either the negative (up to 72 V) or the positive side (up to 24 V).

Compatible Tank Sensors

Wema S3 senders for water and fuel
Schaudt tank sensor (may require an adapter cable)

Monitoring Functions of the PICO One (BASIC) Package

1x battery bank with Real-Time Battery Health™ (monitoring of current, voltage, and temperature)
2x battery voltage only
2x tank levels or temperatures

Additional Functions

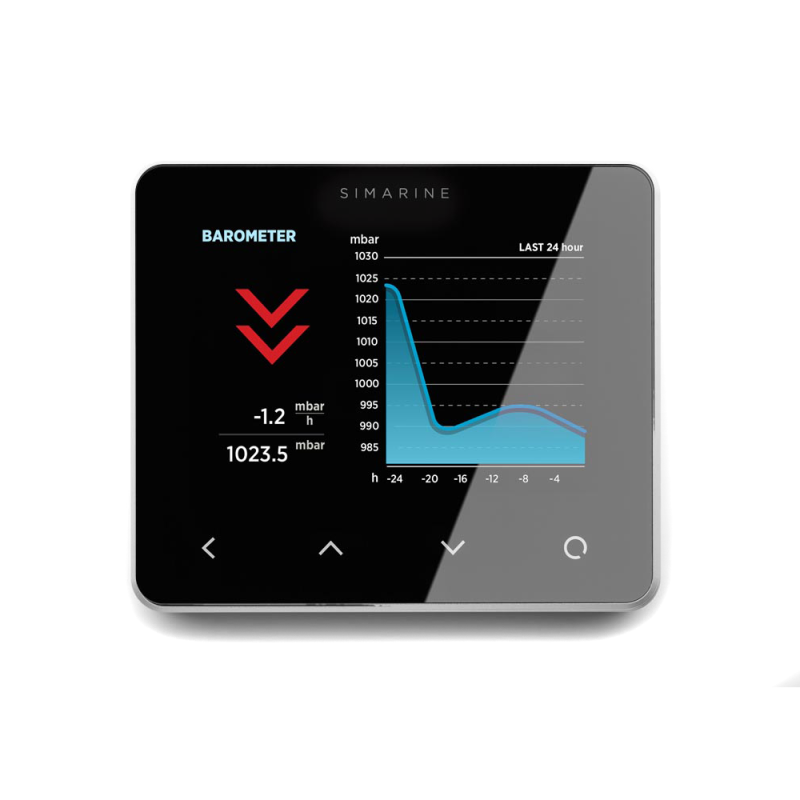

Includes barograph function. The system cannot be expanded with other shunts and modules.

Production Sustainability No information available
