Simarine PICO One Set Rev23 - Battery Monitor and Shunt · Delivery time approx. 2–4 weeks

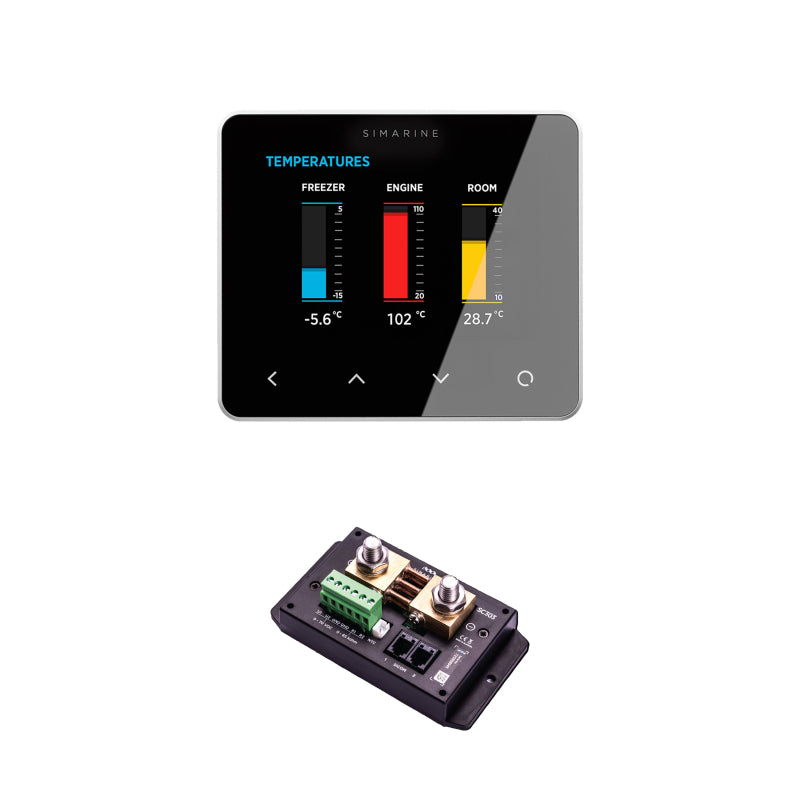

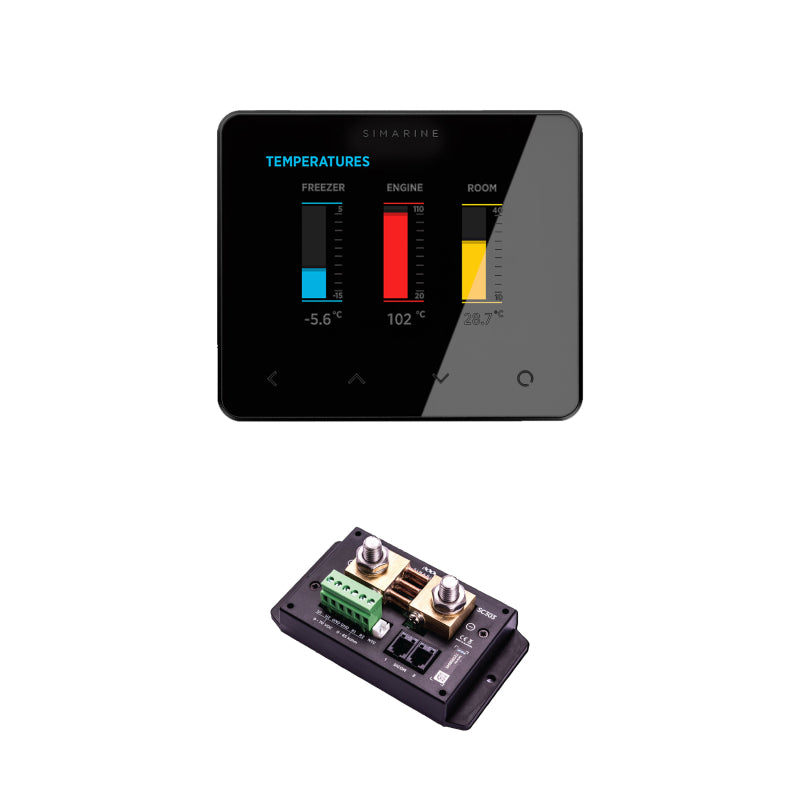

PICO One package in black or silver

The PICO One package is the perfect battery and tank monitoring solution for smaller boats, campervans, buses, and caravans with a service battery bank of up to 300 A at 12 V, 24 V, 48 V, 60 V, and 72 V, one or two engine/reserve battery banks, and up to 2 tanks.

• 1x PICO One display unit
• 1x shunt SC303 300 A


SC303 is an innovative combination of shunt and tank level module.

The active combined shunt SC303 provides precise monitoring of battery voltage in systems with 12 V, 24 V, 48 V, 60 V, and 72 V, battery temperature, and continuous currents of up to 300 A (400 A peak). It is suitable for a maximum power of 3600 W at 12 V or 7200 W at 24 V. It has an additional battery voltage input (2 in total).

The integrated tank level has 2 resistance inputs for monitoring tank level or temperature and an additional JST socket for the temperature sensor with JST connection. In addition, the SC303 module can also be used to monitor the power consumption of large consumers such as inverters, bow and stern thrusters, and anchor winches, and the power generated by generators such as shore power chargers, solar modules, hydro and wind power generators.

The innovative protected architecture of the SC303 allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).

Suitable tank sensors: Basically all resistance-based level indicators such as:

• Wema sensor for water and fuel S3
• Schaudt tank probe (an adapter cable may be required)


All monitoring functions of PICO One package

1x battery bank with Real-Time Battery Health™ (monitoring of current, voltage, and temperature)
2x battery voltage only
2x tank levels or temperatures

Barograph function included



Not expandable with other shunts and modules.
