Simarine PICO One Set Rev23 - Battery monitor and shunt

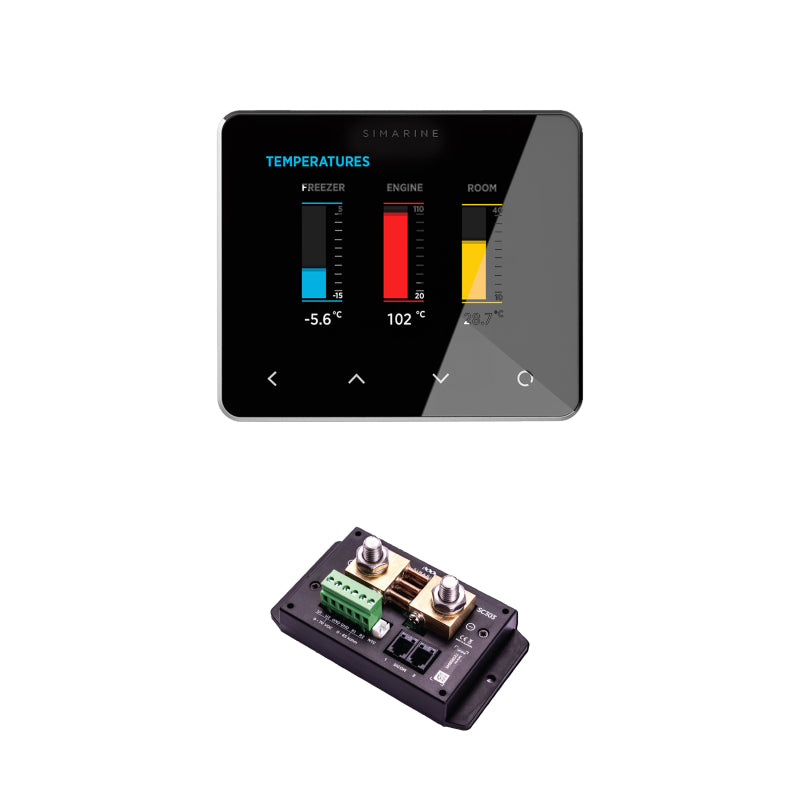

PICO One package in black or silver

The PICO One package is the perfect battery and tank monitoring solution for smaller boats, campervans, buses and caravans with a service battery bank of up to 300A at 12V, 24V, 48V, 60V and 72V, one or two engine/reserve battery banks and up to 2 tanks.

• 1x display unit PICO One
• 1x shunt resistor SC303 300 A


SC303 is an innovative combination of shunt resistor and tank level module.

The SC303 active combination shunt provides precise monitoring of battery voltage in 12V, 24V, 48V, 60V and 72V systems, battery temperature and continuous currents of up to 300A (peak 400A). It is suitable for a maximum power of 3600W at 12V or 7200W at 24V. It has an additional battery voltage input (2 in total).

The integrated tank level has 2 resistance inputs for monitoring the tank level or temperature and an additional JST socket for the temperature sensor with JST connection. In addition, the SC303 module can also be used to monitor the power consumption of large consumers such as inverters, bow and stern thrusters and anchor winches and power generated by generators such as shore power chargers, solar modules, hydro and wind power generators.

The innovative proprietary architecture of the SC303 allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).

Suitable tank sensors : Basically all resistance-related level indicators such as:

• Wema sensor for water and fuel S3
• Schaudt tank probe (an adapter cable may be required)


All monitoring functions of PICO One package

1x battery bank with Real-Time Battery Health™ (monitoring of current, voltage and temperature)
2x battery voltage only
2x tank levels or temperatures

Barograph function included

Not expandable with other shunts and modules.
