Simarine PICO Blue Set Rev23 - Black with Flush Mount · Delivery time approx. 2–4 weeks

Name: Simarine PICO Blue Set Rev23 - Black with Flush Mount · Delivery time approx. 2–4 weeks
Brand: Simarine
SKU: 306-1123
Price: 593.32 EUR
Availability: InStock

€593,32

Tax included. Shipping calculated at checkout

Quantity:

⏳ Delivery time approx. 2–4 weeks
This product is ordered directly from the manufacturer upon order placement. We will confirm the estimated delivery time via email within 24 hours of receiving your order.

PICO Blue package in black

The innovative PICO BLUE package from SIMARINE is the complete battery and tank monitoring solution for demanding yacht and caravan owners with a service battery bank of up to 500 A at 12 V, 24 V, 48 V, 60 V and 72 V, up to four engine/auxiliary battery banks, and up to 4 tanks.
Precise monitoring of solar panels, wind and hydro generators, shore power chargers, or the power consumption of individual consumers such as refrigerators is also possible. A great tool for detecting malfunctions in generators and other equipment.

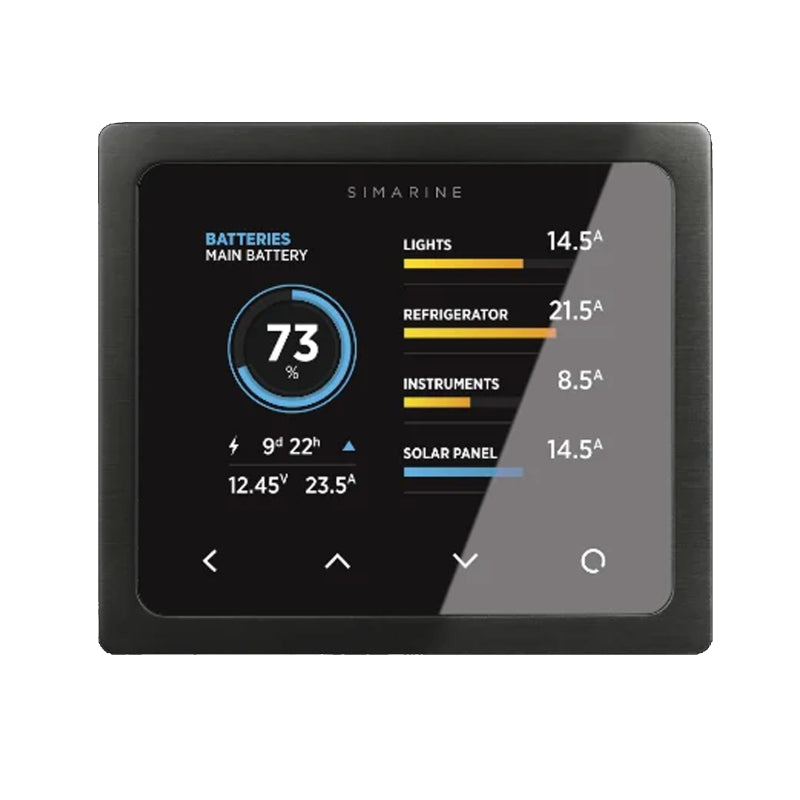

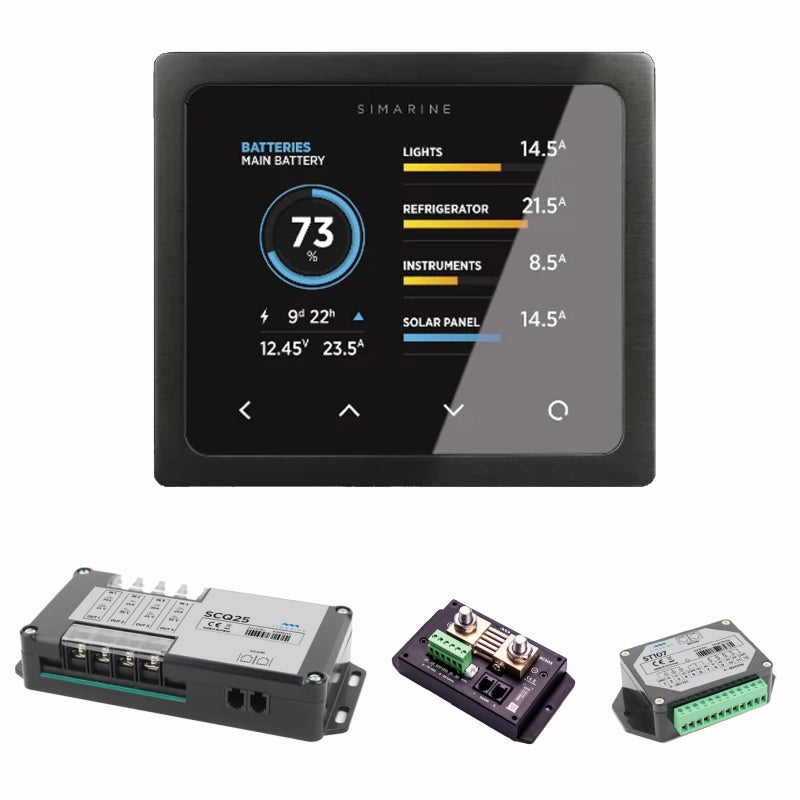

1x PICO display unit
1x Shunt SC503 300 A
1x Tank and Voltage Module ST107

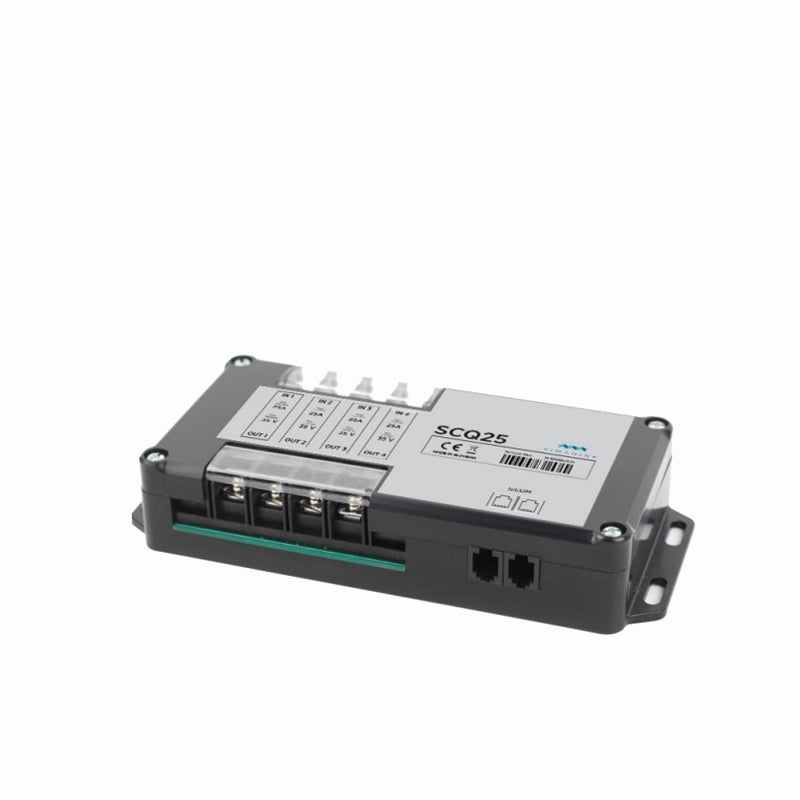

1x Shunt Module SCQ25 Quattro 4x25 A

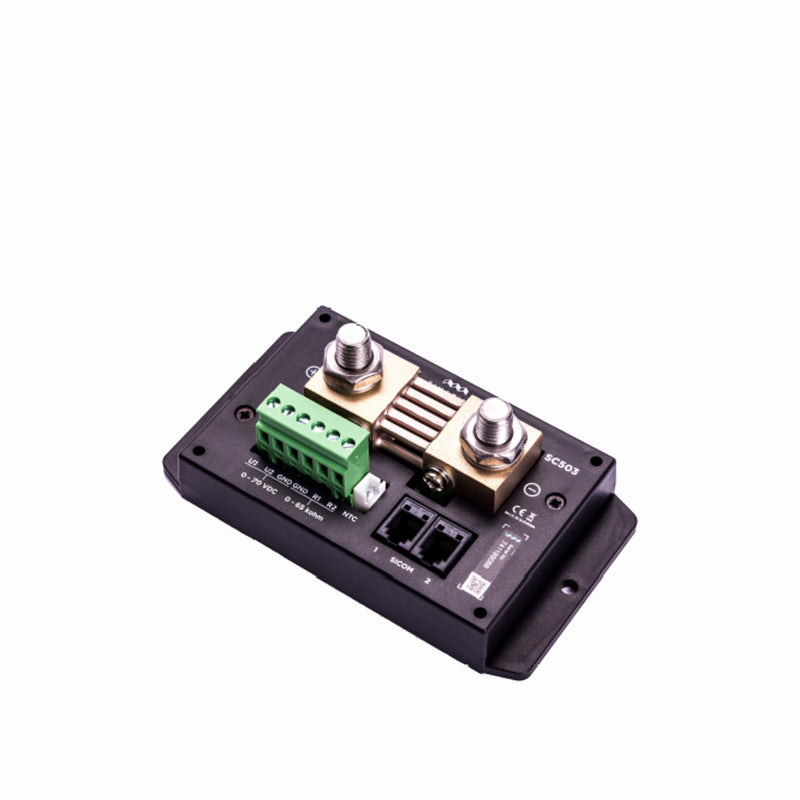

SC503 is an innovative combination of shunt and tank level module.

The active combined shunt SC503 ensures precise monitoring of battery voltage in systems with 12 V, 24 V, 48 V, 60 V, and 72 V, battery temperature, and continuous currents of up to 500 A (700 A peak). It is suitable for a maximum power of 6000 W at 12 V or 12000 W at 24 V. It has an additional battery voltage input (2 total).

The integrated tank level has 3 resistance inputs for monitoring tank level or temperature and an additional JST socket for the temperature sensor with JST connection. Furthermore, the SC503 module can also be used to monitor the power consumption of large consumers such as inverters, bow and stern thrusters, and anchor winches, as well as power generated by generators such as shore power chargers, solar panels, and hydro and wind power generators.

The innovative protected architecture of the SC503 allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).

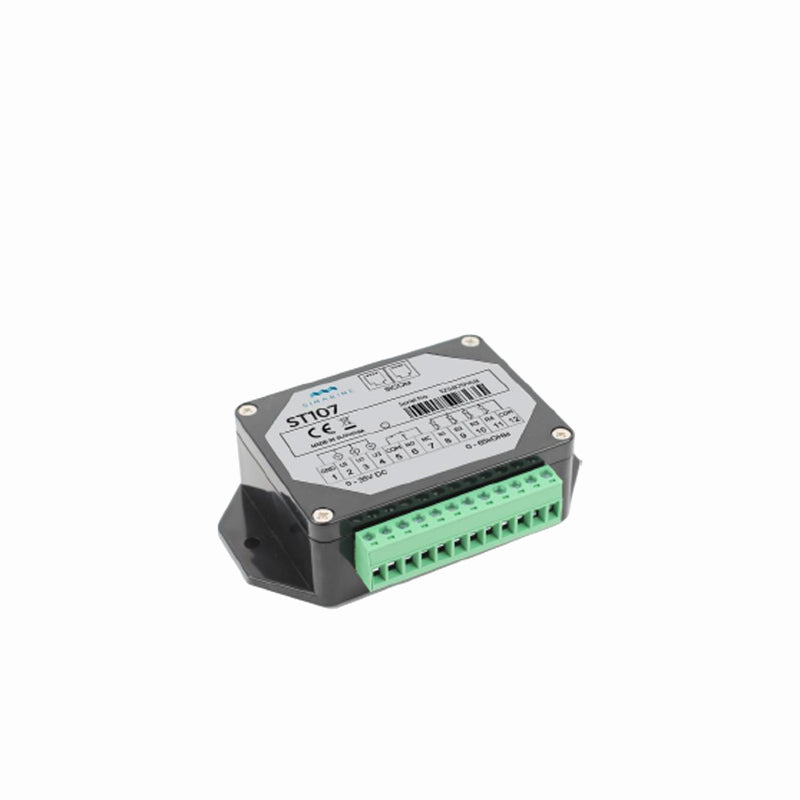

Tank Module ST107

ST107 is a versatile module for monitoring tank and temperature sensors as well as battery voltage. Equipped with four resistance inputs for tank level or temperature resistance sensors and three voltage inputs for tank and battery voltage sensors, it offers a variety of connection options.
The tank module is the latest digital module with extensive connection (and monitoring) capabilities. It allows monitoring of up to 7 tank levels, 3 battery voltages, and 4 temperatures.

Suitable tank sensors: Basically all resistance-based level indicators such as:

Wema S3 sensors for water and fuel
Schaudt tank probe (an adapter cable may be required)

All monitoring functions of the PICO Blue package:

1x battery bank with Real-Time Battery Health™ (current, voltage, and temperature monitoring)
4x battery voltage only
4x tank levels or temperatures
4x individual consumer or generator current channels

Barograph function included.

Compatible and expandable with all SIMARINE shunts and modules.
