Simarine PICO Blue Set Rev2 - Battery Monitor, Tank Electrode and 2 x Shunt Black - without mounting frame · Delivery time approx. 2-4 weeks

Name: Simarine PICO Blue Set Rev2 - Battery Monitor, Tank Electrode and 2 x Shunt Black - without mounting frame · Delivery time approx. 2-4 weeks
Brand: Simarine
SKU: 306-1121-01
Price: 642.41 EUR
Availability: InStock

€642,41

Tax included. Shipping calculated at checkout

Quantity:

⏳ Delivery time approx. 2–4 weeks
This product is ordered directly from the manufacturer upon order. We will confirm the estimated delivery time by email within 24 hours of receiving your order.

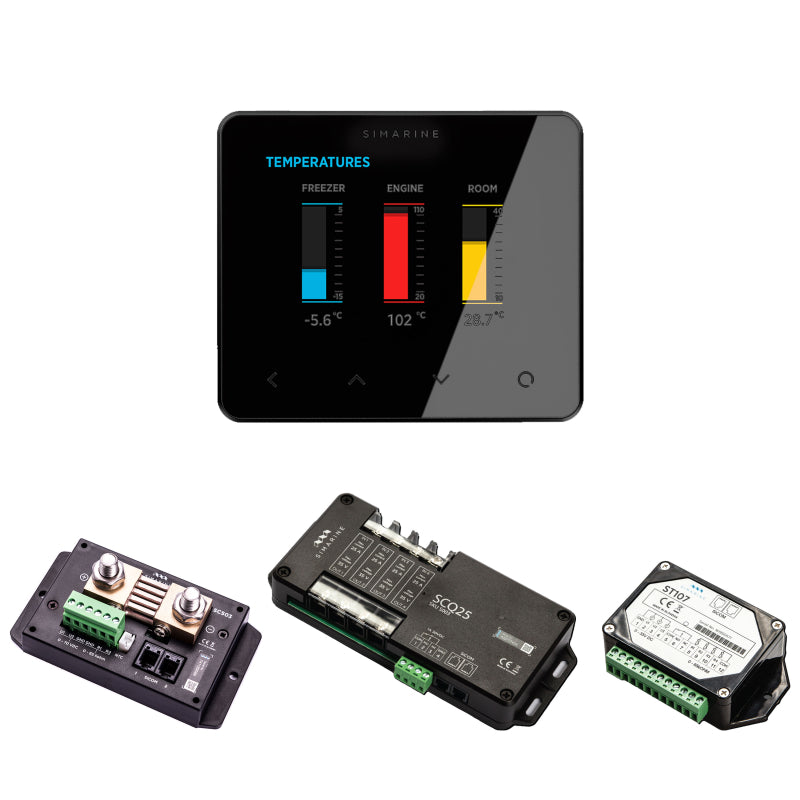

PICO Blue package in black without mounting frame

The innovative PICO Blue package from SIMARINE is the complete battery and tank monitoring solution for demanding yacht and caravan owners with a service battery bank of up to 500 A at 12 V, 24 V, 48 V, 60 V and 72 V, up to four engine/backup battery banks, and up to 4 tanks.
Precise monitoring of solar panels, wind, hydro generators, shore power chargers, or the power consumption of individual loads such as refrigerators is also possible. A great tool for detecting malfunctions in generators and other equipment.

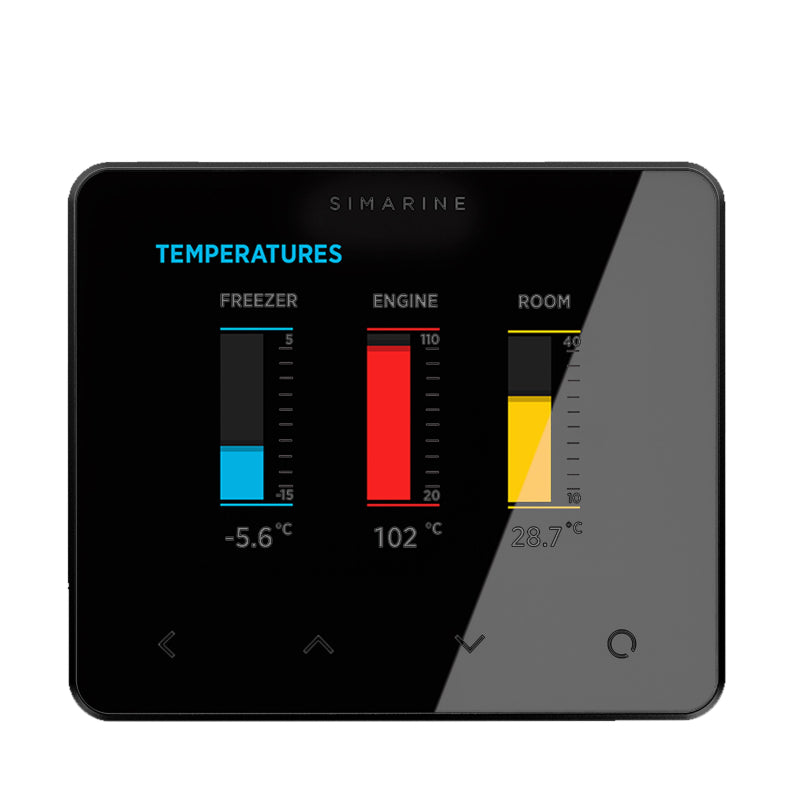

1x PICO Display Unit
1x SC503 500 A Shunt
1x ST107 Tank and Voltage Module

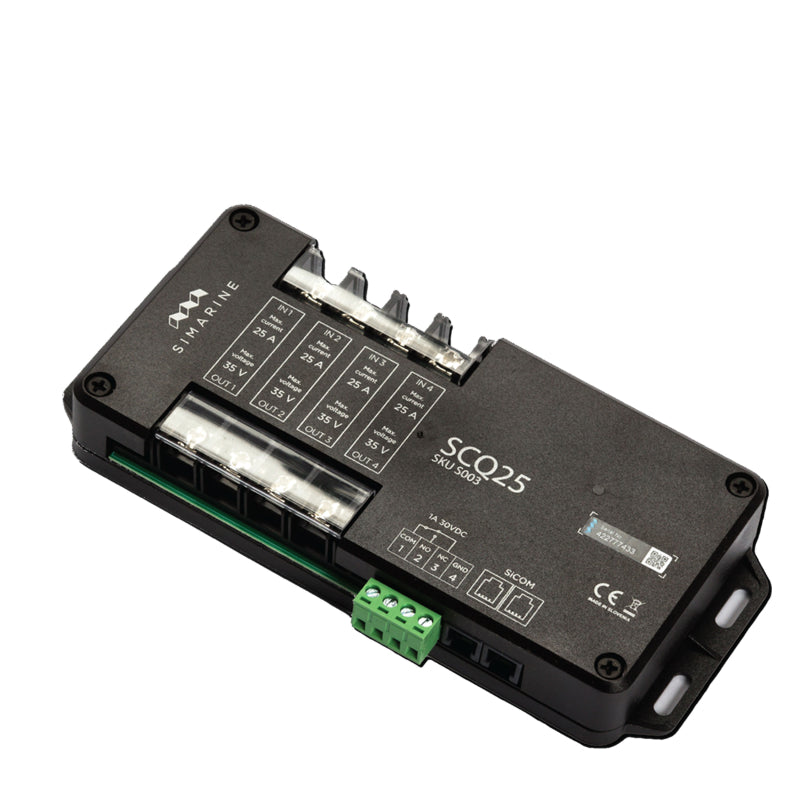

1x SCQ25 Quattro 4x25 A Shunt Module

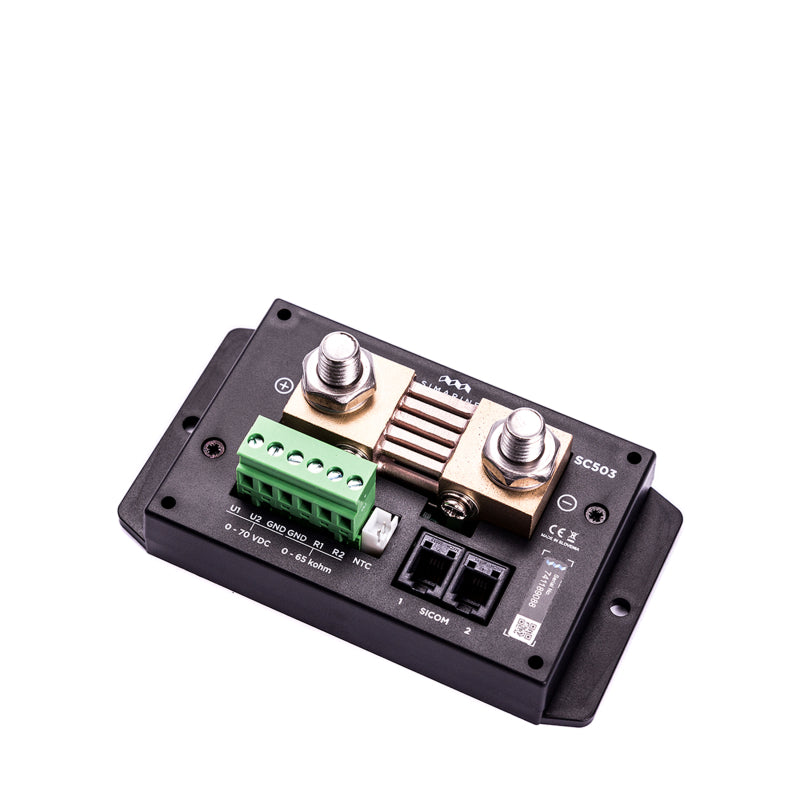

SC503 is an innovative combination of shunt and tank level module.

The active combined shunt SC503 ensures precise monitoring of battery voltage in systems with 12 V, 24 V, 48 V, 60 V, and 72 V, battery temperature, and continuous currents of up to 500 A (700 A peak). It is suitable for a maximum power of 6000 W at 12 V or 12000 W at 24 V. It has an additional battery voltage input (2 total).

The integrated tank level has 2 resistance inputs for monitoring tank level or temperature and an additional JST socket for the temperature sensor with JST connection. In addition, the SC503 module can also be used to monitor the power consumption of large loads such as inverters, bow and stern thrusters, and anchor winches, as well as power generated by generators such as shore power chargers, solar panels, hydro, and wind generators.

The innovative protected architecture of the SC503 allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).

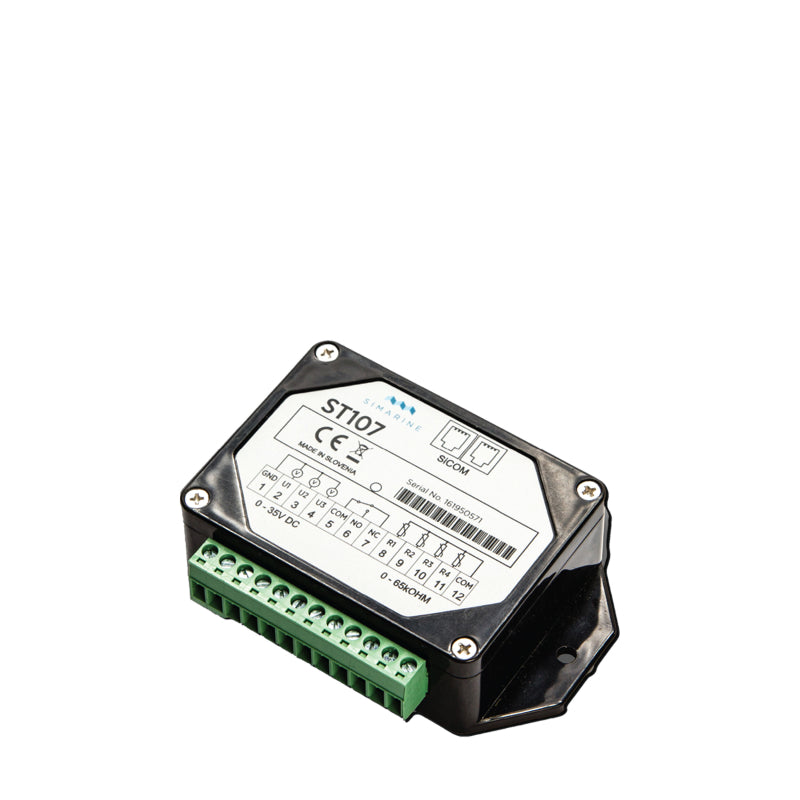

ST107 Tank Module

The ST107 is a versatile module for monitoring tank and temperature sensors, as well as battery voltage. Equipped with four resistance inputs for tank level or temperature resistance sensors and three voltage inputs for tank and battery voltage sensors, it offers diverse connection options.
The tank module is the latest digital module with extensive connection (and monitoring) capabilities. It allows monitoring of up to 7 tank levels, 3 battery voltages, and 4 temperatures.

Suitable tank sensors: Basically all resistance-based level indicators such as:

Wema S3 senders for water and fuel
Schaudt tank sensor (an adapter cable may be required)

All monitoring functions of the PICO Blue package

1x battery bank with Real-Time Battery Health™ (monitoring of current, voltage, and temperature)
4x battery voltage only
4x tank levels or temperatures
4x individual consumer or generator current channels

Barograph function included

Compatible and expandable with all SIMARINE shunts and modules.

Technical Data	Simarine PICO
Power Source Voltage Range	6 - 35 V
Current Consumption at 12 V	5 A
WIFI Frequency	2.4 GHz
Temperature Range	- 20 °C to 70 °C
Battery Connection	M 10
Dimensions without mounting frame	98 x 84 x 10 mm

Technical Data	Simarine SC503
Voltage Range	6 - 35 V
Max. Continuous Current	500 A
Max. Peak Current (< 5 min)	700 A
Max. Peak Current (< 1 min)	1000 A
Battery Connection	M 10
Dimensions	125 mm x 70 mm x 22 mm

Technical Data	Simarine ST107
Voltage Range	6 - 35 V
Voltage Inputs	3
Resistance Inputs	4
Connectivity	SICOM
Dimensions	112 mm x 72 mm x 31 mm

Technical Data	Simarine SCQ25
Voltage Range	6 - 35 V
Max. Continuous Current	25 A
Max. Peak Current (< 1 min)	35 A
Connectivity	SICOM
Dimensions	183 mm x 91 mm x 34 mm

Production Sustainability No data
