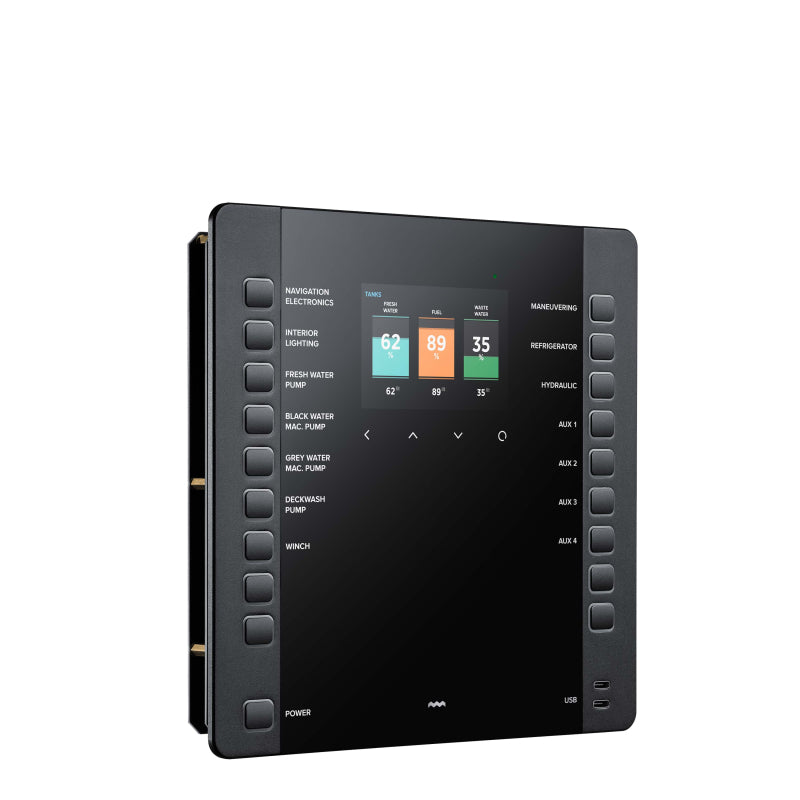

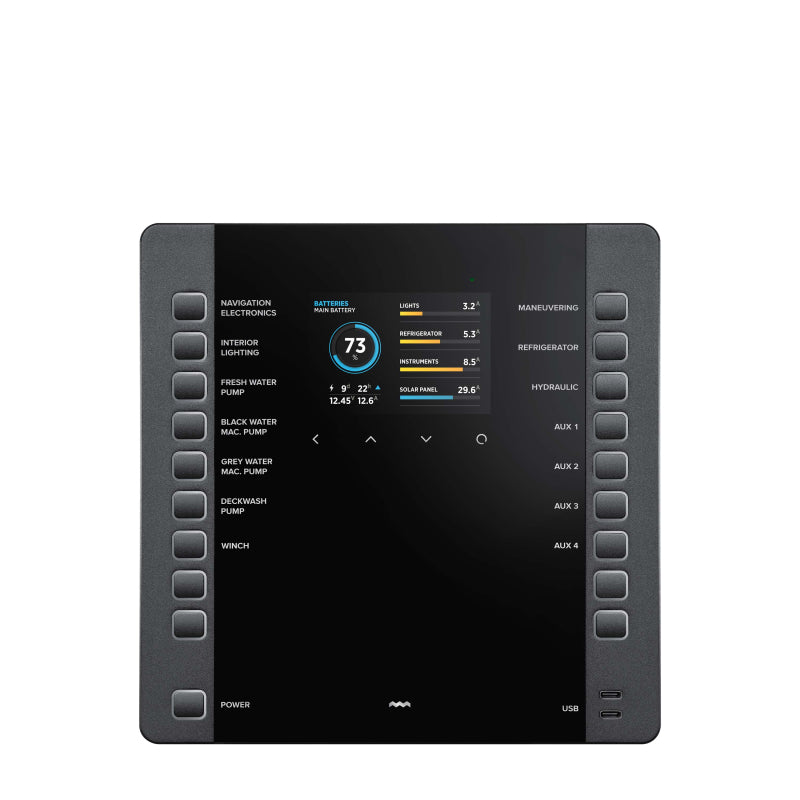

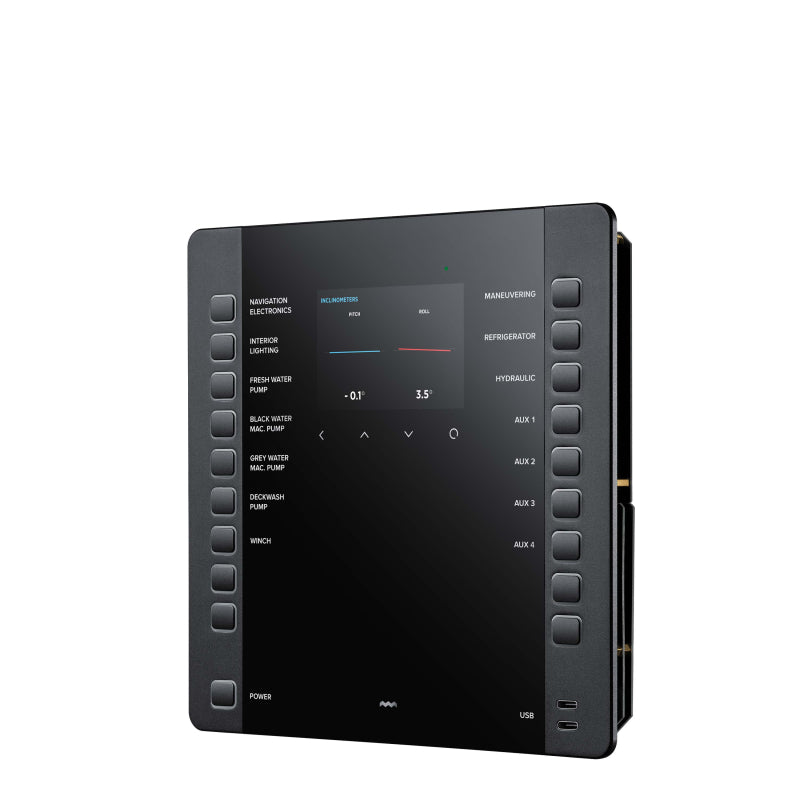

Simarine Nereide 2 Control Unit – Marine Infinite Shop (1/5)

Simarine Nereide 2 Control Unit – Marine Infinite Shop (2/5)

Simarine Nereide 2 Control Unit – Marine Infinite Shop (3/5)

Simarine

Simarine Nereide 2 Control Unit · Delivery time approx. 2–4 weeks

Name: Simarine Nereide 2 Control Unit · Delivery time approx. 2–4 weeks
Brand: Simarine
SKU: 306-1210
Price: 940.10 EUR
Availability: InStock

€940,10

Tax included. Shipping calculated at checkout

Quantity:

⏳ Delivery time approx. 2–4 weeks
This product is ordered directly from the manufacturer upon order. We will confirm the estimated delivery time by email within 24 hours of receiving your order.

Simarine Nereide 2 – The digital switch solution for modern yachts

The Simarine Nereide 2 is an advanced, fully digital switch solution specifically designed for use on yachts. It combines an elegant design with robust technology and offers a high level of functionality, safety, and user-friendliness – both in operation and installation.

High-quality workmanship and intuitive operation

The aluminum housing, optically bonded display, and slightly raised buttons provide a clearly defined pressure point. Depending on the installation variant, the front can be flush or protrude by 5 mm – ideal for various design concepts on board.

Compact DC power distribution with 31 outputs

The distribution unit has a flat design, with a robust circuit board and efficient passive cooling thanks to the aluminum housing. It offers 30 DC outputs up to 10 A and one high-current output up to 30 A – totaling up to 200 A. Standard mini fuses ensure safety. Fault conditions such as tripped fuses or defective relays are immediately visible via a red LED ring indicator on the affected button.

Powerful features at a glance:

Buttons configurable as momentary or toggle switches
Fault indication by color change of the button
8 tank and 7 voltage inputs
Compatibility with all SiCom modules
Automatic backlight
Display for navigation lights

AC modules for safe 230 V power distribution

With the optional SAC15M-RCBO or SAC15R-RCBO AC modules, you can control AC distribution safely and efficiently. Both variants offer:

Two selectable inputs (e.g., shore power, generator, inverter)
Three fused output channels (20 A)
Integrated RCBO circuit breakers (residual current + overcurrent)
Remotely controllable switches on the SAC15R version
Indication of fault conditions directly on the control panel
Current measurement via integrated shunt

Low self-consumption & smart energy monitoring

With only 10 mA current consumption (distributor) and 30 mA in sleep mode (panel), the Nereide 2 is particularly energy-efficient. Your onboard battery is protected even during prolonged periods of non-use. The integrated Pico monitoring system provides you with access to battery status, tank levels, temperature, and air pressure at all times.

Flexible, networked, future-proof

The Nereide 2 is NMEA 2000 compatible and can be seamlessly integrated into existing onboard networks – for control directly via the plotter. Thanks to its modular design, SiCAN communication, and WAGO® connectors, installation is quick and easy.

Developed in collaboration with HanseYachts

The Simarine Nereide 2 is used by renowned shipyards such as Hanse, Dehler, and Fjord – a testament to its quality and practical suitability in the premium class.

Technical Data	Simarine Nereide 2
Power source voltage range	6 -35 V
Power consumption	200 mA
Voltage input range	0 - 75 V
WiFi	2.4 GHz
Battery connections	6 x
Connections for SPU-303	10 x
USB charging outputs	2 x USB 3.0 / 0.7 A
Temperature range	- 20 °C to + 70 °C
Dimensions	210 mm x 210 mm x 40 mm

Production Sustainability No information available
