Simarine DC POWER UNIT SPU303 24V · Delivery time approx. 2–4 weeks

Reliable Power Distribution with the Simarine DC POWER UNIT SPU303 24 V

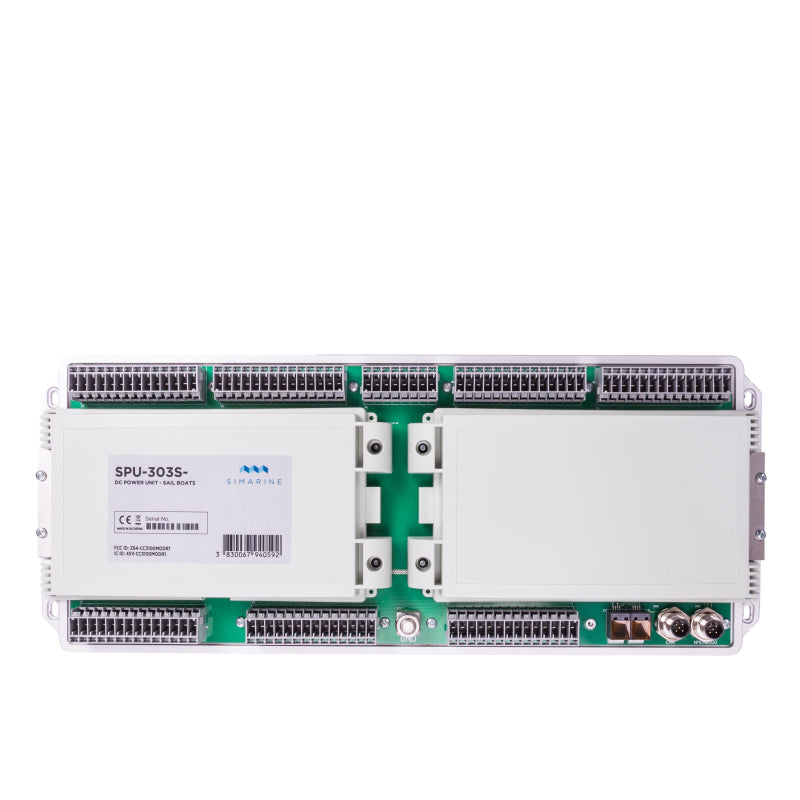

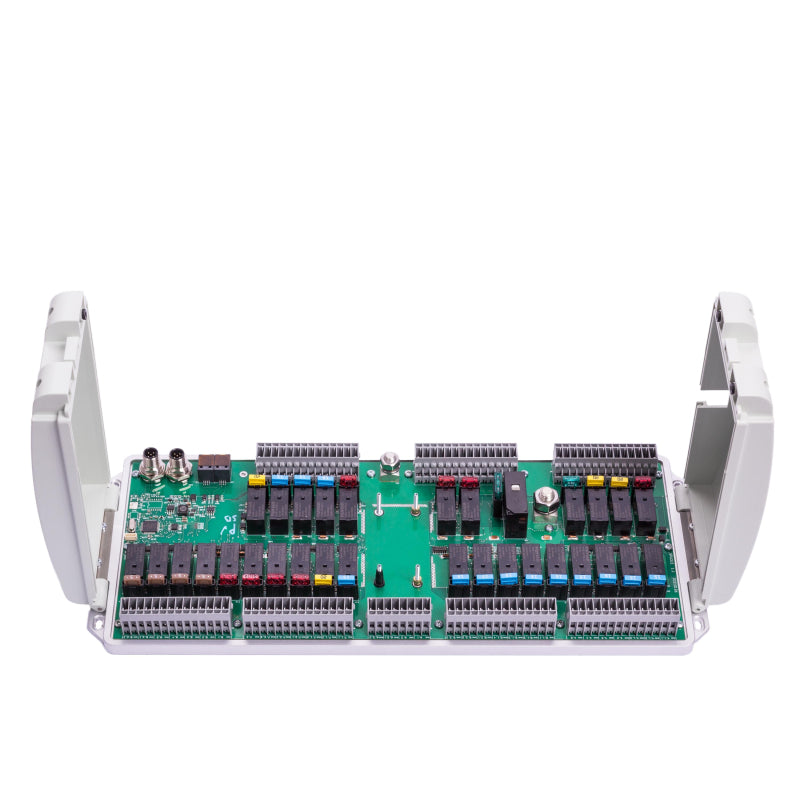

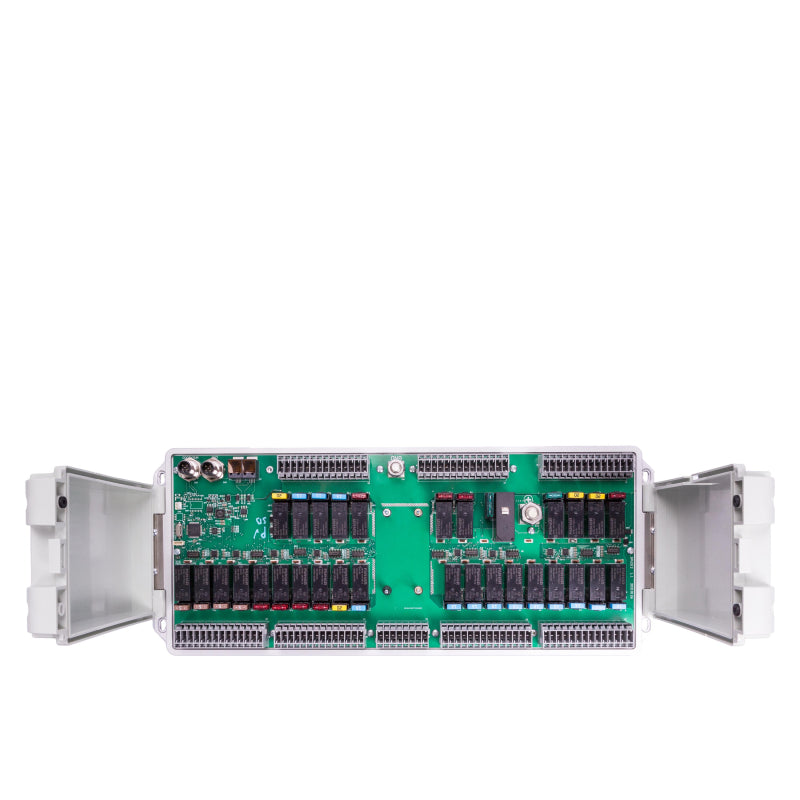

The Simarine SPU303 24 V is a powerful DC power distribution unit, specifically designed for use in 24 V onboard systems. It is primarily used in larger yachts, expedition vehicles, or special vehicles where a higher voltage level is required. The system offers 31 flexibly configurable outputs, including 30 switched channels with integrated mini-fuses and manual relay override, as well as a main power channel with a capacity of up to 30 A.

Efficient Control and Easy Integration

• 30 switched channels, each with 20 A capacity
• 1 main switched channel (ON/OFF) with 30 A
• Maximum total load: 100 A
• Manual override switches for each channel

Optimized for Easy and Secure Installation

Wiring is done via standardized WAGO® connectors, which significantly simplifies installation and ensures a secure connection. Multiple SPU303 devices can be easily connected in series, ideal for larger systems with extended power requirements.

Technically Robust – Even under Demanding Conditions

• Operating voltage: 8 – 22 V DC
• Temperature range: -20 °C to +70 °C

The SPU303 is fully compatible with the Simarine SiCAN bus and is ideal for integration into complex energy management systems. It was developed to ensure reliable power distribution even under extreme environmental conditions.



---



Technical Data	SPU-303 24 V
Operating Voltage	24 V
Current Consumption	mA
SiCAN Connections	x
Temperature Range	- 20 °C to + 70 °C
Dimensions	411 mm x 170 mm x 45 mm
