EPEVER Solar Charge Controller Tracer 3210 AN 30A MPPT for 12V / 24V · Delivery time approx. 2–4 weeks

Name: EPEVER Solar Charge Controller Tracer 3210 AN 30A MPPT for 12V / 24V · Delivery time approx. 2–4 weeks
Brand: EPEVER
SKU: 300-5530
Price: 138.65 EUR
Availability: InStock

€138,65

Tax included. Shipping calculated at checkout

Quantity:

⏳ Delivery time approx. 2–4 weeks
This product is ordered directly from the manufacturer upon order. We will confirm the estimated delivery time by email within 24 hours of receiving your order.

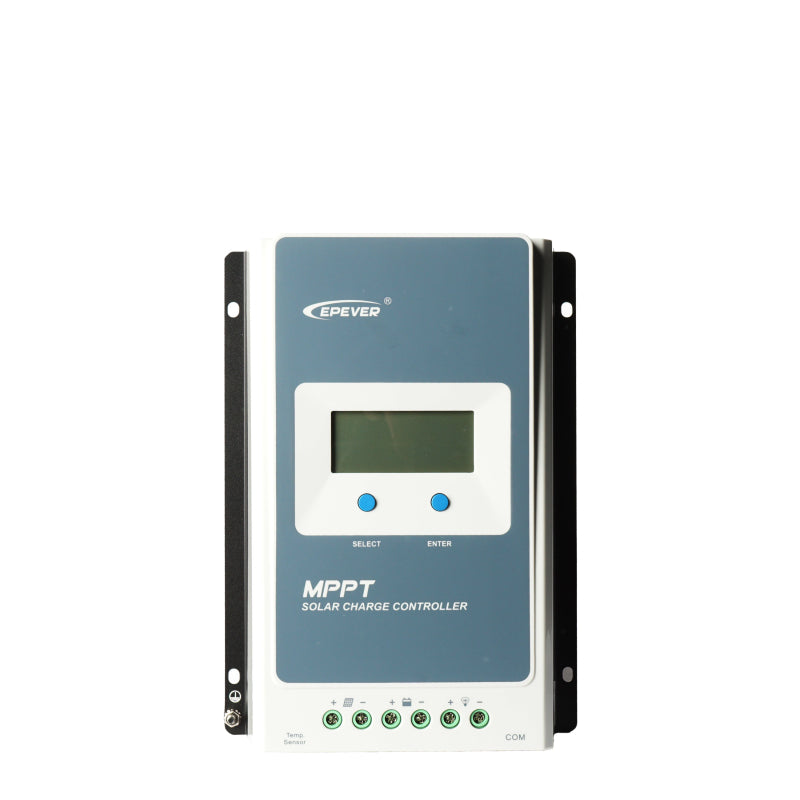

EPEVER Tracer 3210AN MPPT Solar Charge Controller – 30 A for 12 V / 24 V Systems, High Performance for Demanding Solar Systems

The EPEVER Tracer 3210AN is a modern 30 A MPPT solar charge controller for 12 V and 24 V systems, offering maximum efficiency and reliability for medium to large solar applications. With intelligent MPPT technology, it improves the energy conversion of your PV system by up to 30%. The common negative grounding makes it particularly suitable for use in motorhomes, while its versatile features also support professional stationary operation – for example, in communication systems or off-grid installations.

Powerful 30 A Charge Controller for Greater Demands

30 A charging current – ideal for high-performance solar systems
Automatic detection of 12 V and 24 V system voltage
Perfectly suited for mobile applications, motorhomes, garden sheds, or off-grid systems

Efficient Energy Conversion through MPPT Technology

MPPT tracking efficiency ≥ 99.5%
DC/DC efficiency up to 98%
Detection and tracking even with multiple MPP peaks
Wide MPP voltage range for flexible module combinations

Convenient Control & Monitoring

Backlit LCD display for clear status information
RS485 interface with MODBUS protocol
Fully programmable via PC software or mobile app
Real-time energy statistics for transparent system analysis

Safe Operation Under All Conditions

Comprehensive electronic protection against overload, short circuit, reverse polarity & more
Temperature compensation (for lead-acid batteries)
Overheating protection through automatic power adjustment
Stable full-load operation even at high ambient temperatures

Versatile & Future-Proof

Adjustable battery types: Gel, AGM, open acid, and user-defined
Negative grounding via the negative terminal – ideal for vehicle applications
Applicable in private, commercial, and mobile solar systems

The Tracer 3210AN is the right choice for anyone seeking a powerful, flexible, and safe 30 A MPPT charger. Whether in a camper, at a cabin, or in professional installations – this controller ensures stable and efficient solar power utilization.

Technical Data	EPEVER Tracer 3210
Battery Rated Voltage	12 / 24 V
Rated Charging Current	30 A
Rated Discharge Current	30 A
Battery Voltage Range	8 - 32 V
Max. PV Open Circuit Voltage	100 V
Max. PV Input Power 12 / 24 V	390 / 780 W
Temperature Range	- 25 °C to + 50 °C
Weight	1.26 kg
Dimensions	228 x 164 x 55 mm

Production Sustainability No Information
