EcoFlow

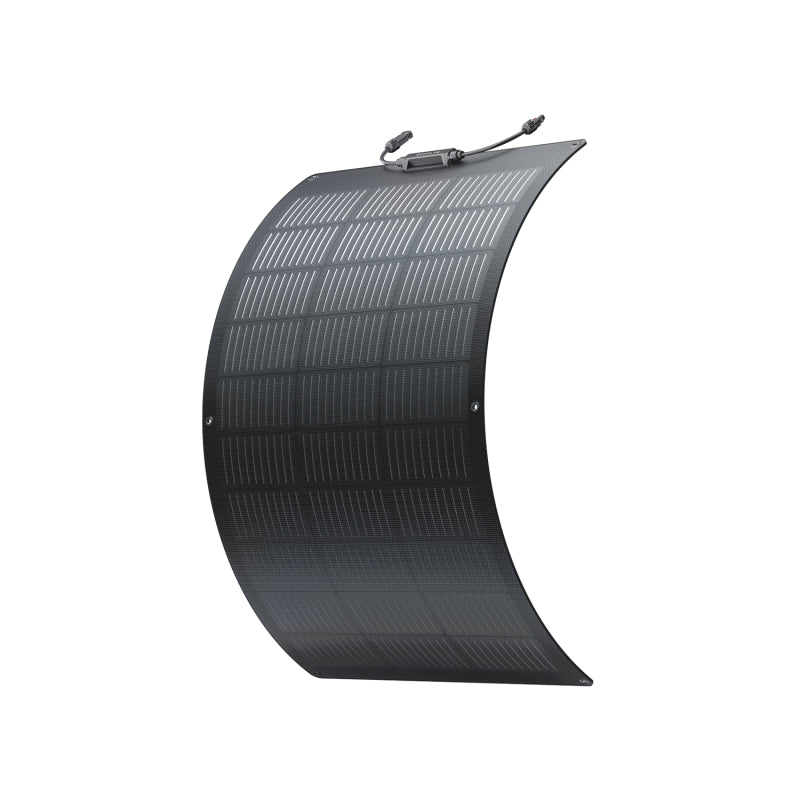

EcoFlow 100W flexible solar panel
EcoFlow 100 Wp solar module
Light and flexible
EcoFlow's flexible solar panel is exceptionally lightweight—approximately 70% lighter than conventional solar panels—making both transport and installation extremely easy. It easily bends up to 258 degrees, conforming to the unique shape of your RV without compromising solar gain.
Intelligent solar energy
The EcoFlow 100W Solar Panel is designed to generate maximum power at all times when combined with an EcoFlow Power Station. The solar module boasts a high efficiency of 21 to 22%. The intelligent algorithm of the EcoFlow MPPT Power Station ensures the best possible efficiency even under adverse weather conditions. Of course, the weather conditions must still be within the operating range.
Robust, dust and water resistant
The 100W solar panel can capture solar energy even in heavy rain. Thanks to the protective ETFE coating, the solar cells can withstand a wide range of environmental conditions, from humid to dry. *The IP68 water and dust resistance rating was tested under controlled laboratory conditions according to IEC 60529 (up to 72 hours in a maximum depth of 1m).
Technical data | EcoFlow 100 W |
---|---|
Module type | 12V module |
Rated power (Pmpp) | 100 Wp (+/- 5%) |
Max. daily yield (summer) | 400 Wh/d |
Short-circuit current (Isc) | 6.3 A |
Open circuit voltage (Uoc) | 20.3 V |
Voltage (Umpp) | 17.1 V |
Electricity (Impp) | 5.9 A |
Module efficiency | 21-22% |
Mass | 105 x 61.2 x 2.5 cm |
Weight | 2.3 kg |
